Product Details:
|
| Product Name: | Sludge Dewatering Machine | Material: | Stainless Steel |
|---|---|---|---|
| Application: | Spate Separation | Voltage: | 220V/380V |
| Method: | Physical Treatment | Warranty: | 1 Year |
| Power: | 1.1kW | Size: | 3370*940*1670mm |
| Type: | Screw | ||
| High Light: | multi plate screw press rust proof,Spate Separation multi disk screw press,OEM Sludge Dewatering Machine |
||

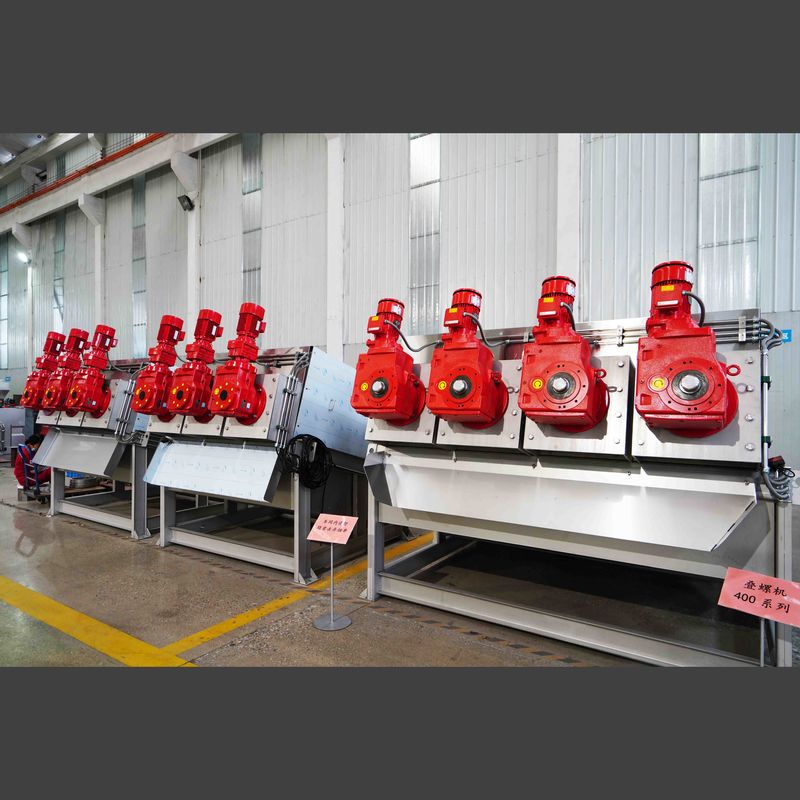

Sludge Dewatering Machine
Easy installation Screw Press Type Sludge Dewatering Equipment
Introduction
he Multi-plate Screw Press follows the dewatering principles of force-water current, thin-layer dewatering, moderate pressure and extension of the sludge dewatering path. It is able to treat low concentration sludge and oily sludge effectively, with low energy consumption and easy operation. This Multi-plate Screw Press realizes an energy-efficiently sludge dewatering.
Functional Principle
Layers of spacers, fixed and moving rings construct the dewatering cylinder. Moving rings, which are slightly smaller than the outer diameter of the screw and slightly narrower than the spacers, are located between the fixed rings. Edge of the screw pushes these moving rings in continuous circular motion.
The moving rings continuously clean sludge out of the gaps, prevents clogging and reduces the use of rinsing water.
Advantages
1. One-in-all design, fits in small facility
Multi-plate Screw Press adopted the unified structure that serves two functions, thickening and dewatering in the single machinery. The drum filter, because of the clog-free, realizes higher speed of filtering phenomena per filtering area as compared to other methods. For this reason, low concentration sludge of about Total Solids 0.2%, as well as thickened sludge, can be directly fed without pre-thickening.
2. Applicable to sludge in various kinds of applications
1) Municipal water and wastewater treatment plants
2) Agricultural/fishery community wastewater treatment plants
3) Industrial waste treatment plants
4) Food/beverage production plants
5) Dairy farming/Meat processing plants
6) Chemicals manufacturing plants
7) Machinery manufacturing/Metal processing plants
8) Laundry wastewater
9) Other (paper manufacturing, building material manufacturing, oilfield associated water accompanied with crude oil mining, etc. )
Specifications
| Model | Size(mm) | Net Weight(kg) | Operating Weight(kg) | Power(kW) | Amount of cleaning water(L/H) | processing capacity(kg) |
| TNW-131 | 1860*750*1080 | 205 | 300 | 0.2 | 24 | 0~6 |
| TNW-132 | 1960*870*1080 | 275 | 425 | 0.3 | 48 | 0~12 |
| TNW-201 | 2440*860*1380 | 320 | 470 | 0.74 | 32 |
0~12 |
| TNW-202 | 2650*960*1380 | 470 | 730 | 1.11 | 64 | 0~24 |
| TNW-301 | 3370*940*1670 | 910 | 1320 | 1.5 | 40 | 0~30 |
| TNW-302 | 3570*1260*1670 | 1350 | 2130 | 2.25 | 80 | 0~60 |
| TNW-303 | 3830*1620*1670 | 1820 | 2880 | 3 | 120 | 0~90 |
| TNW-351 | 3900*1160*2190 | 1610 | 2210 | 1.1 | 72 | 0~60 |
| TNW-352 | 4240*1550*2190 | 2300 | 3400 | 2.75 | 144 | 0~120 |
| TNW-353 | 4460*2100*2190 | 3350 | 4850 | 5.7 | 216 | 0~180 |
| TNW-354 | 4660*2650*2190 | 4500 | 6100 | 9.55 | 288 | 0~240 |
Product Graphic Details
Company Profile
Chengdu Yuanjin Environmental Protection Engineering Co., Ltd. was established in 2012 . The company is a high-tech enterprise. It has obtained a number of certificates such as a patent certificate, nine software copyrights, a construction enterprise qualification certificate, and ISO9001 international quality management system certification.
FAQ
1.Why choose us?
1) Yuanjin has 12 years of experience in wastewater and sludge treatment.
2) We introduce advanced technology and experience at home and abroad, and have been committed to the research and development of water treatment equipment for a long time.
3) We only use the best parts from the best suppliers.
4) Yuanjin's technical team is composed of a group of people with long-term working experience in the field of water treatment to provide customers with high-quality services.
2. What is the price of the product?
According to the amount of water treated, the price is different, and the unit price range is 145~866 $/m3·d.
3. What is the effect of the treated water?
1) The treated pure water can be directly consumed and meets the World Health Organization (WHO) drinking water quality standards.
2) The sewage can be directly discharged after treatment, which is environmentally friendly and meets the requirements of international sewage treatment discharge standards.
