Product Details:
|
| Product Name: | Sludge Dewatering Machine | Material: | Stainless Steel 304 |
|---|---|---|---|
| Application: | Spate Separation | Control: | Automatic Control Box |
| Method: | Physical Treatment | Warranty: | 1 Year |
| Power: | 0.2kw | Size: | 1860*750*1080mm |
| Type: | Screw Press | Certificates: | ISO 9001, ISO 14001,CMA |
| Usage: | Sludge Dewatering | ||
| High Light: | 0.2kw screw filter press machine,screw sludge dewatering machine,screw press dewatering device |
||

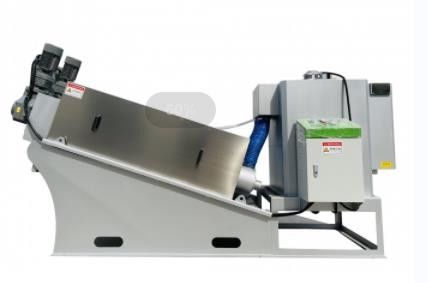

Sludge Dewatering Machine
Screw Filter Press Sludge Dewatering Machine For Mud Slurry Waste Water Treatment
Sludge Dewatering Machine Description
Screw press sludge dehydrator machine is a screw press dewatering equipment.
It can be used to effectively concentrate and dewater sludge wastewater.
Applications such as wastewater treatment plants, food processing industry, chemical industry and industrial wastewater and aquaculture wastewater treatment products.
Our dewatering screw press can thicken sludge water to 20% of the dry matter content of municipal sludge, and more for minerals and industrial sludge, which can provide efficient decontamination effects. In terms of quality, the equipment surpasses traditional sedimentation sludge removal and other technologies.
Advantage
Advantage one: treatment of low concentration sludge
The recommended sludge concentration is between 2000mg/L and 5000mg/L
Equipped with proprietary rotary disc pre-concentration device, it is better at dealing with low concentration sludge, improves the shortcomings of existing gravity concentration, and realizes high efficiency concentration of low concentration sludge.
The integration of flocculation and concentration is completed, and the subsequent dehydration pressure is reduced. Combined with the adjustment of the expansion valve, the slurry concentration can be adjusted to a better state of dehydration.
Advantage two: self-cleaning, no blockage
Dynamic fixed ring replaces filter cloth, self-cleaning, no blockage, easy to handle oily sludge
Under the rotating action of the screw shaft, the movable plate is continuously staggered with respect to the fixed plate, so as to realize the continuous self-cleaning process and avoid the blockage problem commonly existed in the traditional dehydrator. Therefore, the ability to resist oil pollution is strong, easy to separate and not blocked. And it's not equipped with a water cannon.
Specifications
| Model | Size(mm) | Net Weight(kg) | Operating Weight(kg) | Power(kW) | Amount of cleaning water(L/H) | processing capacity(kg) |
| TNW-131 | 1860*750*1080 | 205 | 300 | 0.2 | 24 | 0~6 |
| TNW-132 | 1960*870*1080 | 275 | 425 | 0.3 | 48 | 0~12 |
| TNW-201 | 2440*860*1380 | 320 | 470 | 0.74 | 32 |
0~12 |
| TNW-202 | 2650*960*1380 | 470 | 730 | 1.11 | 64 | 0~24 |
| TNW-301 | 3370*940*1670 | 910 | 1320 | 1.5 | 40 | 0~30 |
| TNW-302 | 3570*1260*1670 | 1350 | 2130 | 2.25 | 80 | 0~60 |
| TNW-303 | 3830*1620*1670 | 1820 | 2880 | 3 | 120 | 0~90 |
| TNW-351 | 3900*1160*2190 | 1610 | 2210 | 1.1 | 72 | 0~60 |
| TNW-352 | 4240*1550*2190 | 2300 | 3400 | 2.75 | 144 | 0~120 |
| TNW-353 | 4460*2100*2190 | 3350 | 4850 | 5.7 | 216 | 0~180 |
| TNW-354 | 4660*2650*2190 | 4500 | 6100 | 9.55 | 288 | 0~240 |
Product Graphic Details
Company Profile
Chengdu Yuanjin Environmental Protection Engineering Co., Ltd. was established in 2012 . The company is a high-tech enterprise. It has obtained a number of certificates such as a patent certificate, nine software copyrights, a construction enterprise qualification certificate, and ISO9001 international quality management system certification.
FAQ
1.Why choose us?
1) Yuanjin has 12 years of experience in wastewater and sludge treatment.
2) We introduce advanced technology and experience at home and abroad, and have been committed to the research and development of water treatment equipment for a long time.
3) We only use the best parts from the best suppliers.
4) Yuanjin's technical team is composed of a group of people with long-term working experience in the field of water treatment to provide customers with high-quality services.
2. What is the price of the product?
According to the amount of water treated, the price is different, and the unit price range is 145~866 $/m3·d.
3. What is the effect of the treated water?
1) The treated pure water can be directly consumed and meets the World Health Organization (WHO) drinking water quality standards.
2) The sewage can be directly discharged after treatment, which is environmentally friendly and meets the requirements of international sewage treatment discharge standards.
