Product Details:
|
| Product Name: | Sludge Dewatering Machine | Material: | Stainless Steel |
|---|---|---|---|
| Application: | Spate Separation | Voltage: | 110V / 220V / 380V |
| Method: | Physical Treatment | Warranty: | 1 Year |
| Power: | 3kw | Size: | 3370*940*1670mm |
| Type: | Screw Press | Certificates: | ISO 9001, ISO 14001,CMA |
| High Light: | 3kw Sludge Dewatering Machine,multi plate screw press ISO 14001,3kw wastewater screw press |
||
Sludge Dewatering Machine
Dewatering Sludge Machine Screw Press Sludge Dewatering Machine
Sludge Dewatering Screw Press is widely used in municipal wastewater treatment engineering, petrochemical, light industry, chemical fiber, paper making, pharmaceutical, leather and other industries. The actual operation shows that the sludge dewatering can create considerable economic benefits and social benefits for the customers.

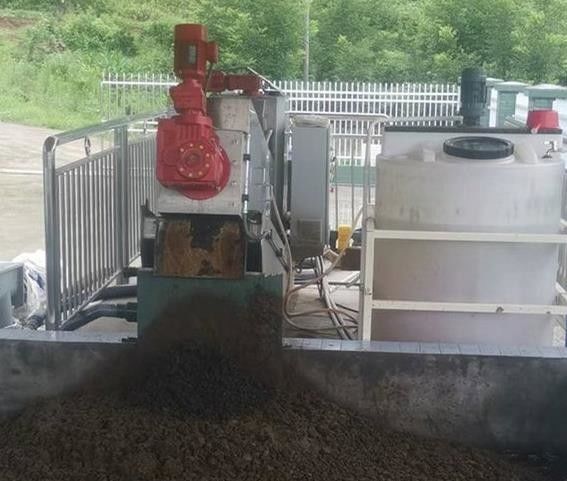

The screw type sludge dewatering machine is a kind of water treatment system, which is widely used in municipal wastewater treatment engineering, petrochemical, light industry, chemical fiber, paper making, leather and other industries. The conditioned sludge flows into the filter zones from the flocculation tank and is pushed forward to the discharging end.With the gaps between the thread of the shaft is getting even narrower,the pressure on the sludge is getting higher and higher.Then the water is separated from the sludge and flows out from the gaps between the moving rings and fixed rings.The movement of the moving rings will clean the gaps between moving and fixed rings and prevent the machine from blockage.The filtered sludge cakes will be pushed forward by the shaft and finally discharged from the end.
Specifications
| Model | Size(mm) | Net Weight(kg) | Operating Weight(kg) | Power(kW) | Amount of cleaning water(L/H) | processing capacity(kg) |
| TNW-131 | 1860*750*1080 | 205 | 300 | 0.2 | 24 | 0~6 |
| TNW-132 | 1960*870*1080 | 275 | 425 | 0.3 | 48 | 0~12 |
| TNW-201 | 2440*860*1380 | 320 | 470 | 0.74 | 32 |
0~12 |
| TNW-202 | 2650*960*1380 | 470 | 730 | 1.11 | 64 | 0~24 |
| TNW-301 | 3370*940*1670 | 910 | 1320 | 1.5 | 40 | 0~30 |
| TNW-302 | 3570*1260*1670 | 1350 | 2130 | 2.25 | 80 | 0~60 |
| TNW-303 | 3830*1620*1670 | 1820 | 2880 | 3 | 120 | 0~90 |
| TNW-351 | 3900*1160*2190 | 1610 | 2210 | 1.1 | 72 | 0~60 |
| TNW-352 | 4240*1550*2190 | 2300 | 3400 | 2.75 | 144 | 0~120 |
| TNW-353 | 4460*2100*2190 | 3350 | 4850 | 5.7 | 216 | 0~180 |
| TNW-354 | 4660*2650*2190 | 4500 | 6100 | 9.55 | 288 | 0~240 |
Product Graphic Details
Company Profile
Chengdu Yuanjin Environmental Protection Engineering Co., Ltd. was established in 2012 . The company is a high-tech enterprise. It has obtained a number of certificates such as a patent certificate, nine software copyrights, a construction enterprise qualification certificate, and ISO9001 international quality management system certification.
FAQ
1.Why choose us?
1) Yuanjin has 12 years of experience in wastewater and sludge treatment.
2) We introduce advanced technology and experience at home and abroad, and have been committed to the research and development of water treatment equipment for a long time.
3) We only use the best parts from the best suppliers.
4) Yuanjin's technical team is composed of a group of people with long-term working experience in the field of water treatment to provide customers with high-quality services.
2. What is the price of the product?
According to the amount of water treated, the price is different, and the unit price range is 145~866 $/m3·d.
3. What is the effect of the treated water?
1) The treated pure water can be directly consumed and meets the World Health Organization (WHO) drinking water quality standards.
2) The sewage can be directly discharged after treatment, which is environmentally friendly and meets the requirements of international sewage treatment discharge standards.
