Product Details:
|
| Product Name: | MBR Wastewater Treatment System | Technology: | AO+MBR |
|---|---|---|---|
| After Warranty Service: | Video Technical Support | Maximum Throughout: | 120m3/d |
| Application: | Sewage Treatment, Industry, Water Disinfection, Hospital Etc., Organic Wastewater Treatment | Certified: | ISO 9001 |
| Power: | 12kW | Material: | PVDF,Carbon Steel,SUS304,OEM,PVDF/PP/PS/PVC |
| High Light: | CE MBR Wastewater Treatment Equipment,AO water disinfection machine,CE rural sewer systems |
||

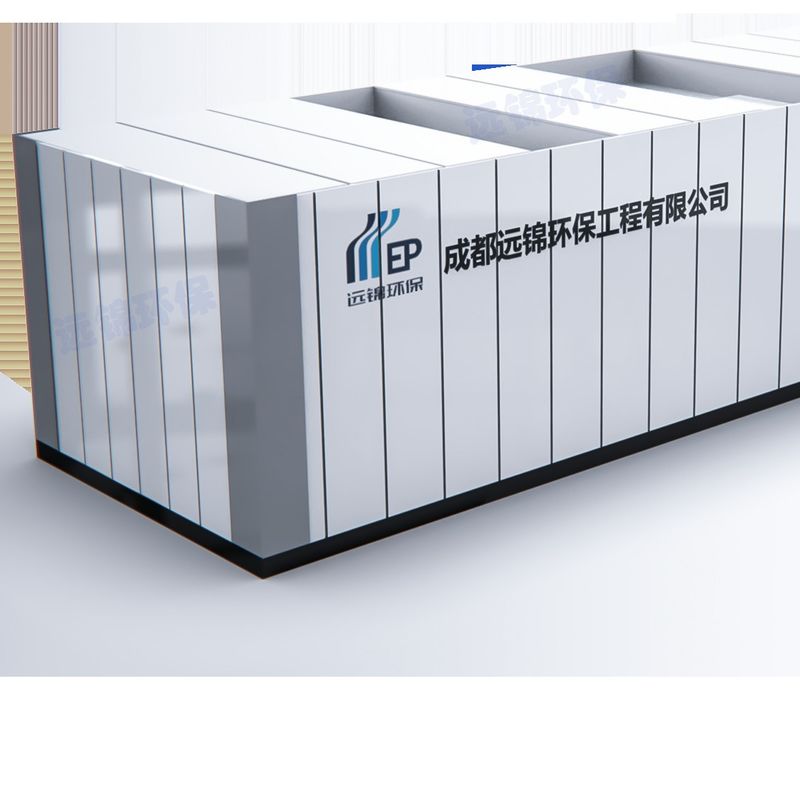

MBR Wastewater Treatment Equipment
AO+MBR MBR Treatment System Equipment Water Disinfection
|
item
|
DT·JIN
|
|
Condition
|
New
|
|
Applicable Industries
|
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company, Other
|
|
Showroom Location
|
None
|
|
Video outgoing-inspection
|
Provided
|
|
Machinery Test Report
|
Provided
|
|
Marketing Type
|
DT.JIN
|
|
Warranty of core components
|
1 Year
|
|
Core Components
|
membrane
|
|
Place of Origin
|
China
|
|
|
Henan
|
|
Brand Name
|
YI XIN
|
|
Warranty
|
1 Year
|
|
Productivity
|
2000L/Hour
|
|
Weight (KG)
|
500kg
|
|
Material
|
carbon STEEL, Carbon steel or stainless steel
|
|
Application
|
Wastewater Treatment Plant
|
|
Type
|
Sewage Treatment Plant
|
|
Usage
|
Kill Bacteria
|
|
Function
|
Purify Sewage
|
|
Certification
|
CE Certificate
|
|
Use
|
Waste Water Cleaning
|
|
Feature
|
Short construction period and simple installation
|
|
Advantage
|
Fast Delivery
|
Integrated intelligent (MBR) purification equipment is mainly divided into two forms: above ground and buried.
Integrated intelligent (MBR) purification equipment system composition:
Anoxic tank: anoxic tank, as a pre-treatment unit, provides a site for microbial hydrolysis, acidification, denitrification, etc.
MBR membrane tank: membrane tank is the core part of MBR system, which realizes the deep purification of wastewater in bioreactor through efficient separation of plate membrane.
Clean water tank: clean water tank stores MBR filtered water, which can be reused with dosing or disinfection device.
Equipment room: a place to assemble mechanical and electrical equipment, the main equipment is blower, self-priming pump, PLC control system and membrane cleaning equipment.
Integrated intelligent (MBR) purification equipment
The manufacturing process is completed in the factory with controllable production cycle and reliable quality.
Simple site installation, short construction period, no structural concrete structures.
It is a decentralized on-site treatment equipment, which does not need to collect long sewage pipes for centralized treatment and
has low capital construction cost.
High degree of automatic control, no resident operation and maintenance personnel, online detection and remote control can berealized.
Integrated intelligent (MBR) purification equipment scope of application:
Hotel, supermarket, hotel, villa, community sewage treatment and reuse.
New rural areas, service areas, environmental protection public toilets, tourist attractions and other environmentally sensitive areas sewage treatment and reuse.
Universities, scientific research institutions, environmental protection enterprises scientific experiments.
PRODUCT DETAILS
PRODUCT ADVANTAGES
THE TREATMENT EFFECT IS OBVIOUS
After sewage treatment,it can be used for greening,toilet and other reclaimed water reuse
Application
Membrane bioreactor (MBR) is a new and efficient wastewater treatment technology which combines membrane separation and biological treatment. The denitrification mechanism of industrial nitrogenous wastewater includes two basic processes: nitrification and denitrification. Nitrification refers to the process of converting ammonia nitrogen into nitrate nitrogen, which is mainly completed by two types of aerobic autotrophic bacteria, nitrifying bacteria and nitrifying bacteria.
MBR membrane technology first by activated sludge removal of biodegradable organic pollutants in water, and then USES the membrane component force intercept the activated sludge bioreactor and the vast majority of suspended solids, implementation after purification of water and activated sludge solid-liquid separation, thus strengthened the biochemical reaction, improve the effect of the sewage treatment and water quality.
The MBR process has a significant effect on COD treatment in the wastewater of nitrogen fertilizer industry, and its biochemical strain regimen and acclimation stage is short, showing a stable effect from the third day. In stable treatment stage and normal operation stage, the COD removal rate can maintain high, and the removal rate is more than 90%. The average COD for export should be controlled below 30mg/L.
REAL SHOT DISPLAY
COMPANY REAL SHOW
Chengdu Yuanjin Environmental Protection Engineering Co., Ltd. was established in 2012 with a registered capital of 20 million. The production workshop covers an area of 1,400 square meters. There are more than 20 employees, including 2 senior engineers, 4 intermediate engineers, and 14 professional technicians; our company's technical team, all It is composed of a group of people who have worked in the field of water treatment for a long time. The company is a high-tech enterprise. It has obtained a number of certificates such as a patent certificate, nine software copyrights, a construction enterprise qualification certificate, and ISO9001 international quality management system certification. The environmental protection project will strive to build the most well-known Chengdu water treatment company. We have always adhered to the tenet of "quality first, customer first" and the management policy of "integrity, pragmatism, responsibility and efficiency", and advocated new ideas and new technologies. Tolerance for failure is the company's philosophy, which ensures that every employee of our company can pay for the company wholeheartedly, and that every one of our customers is satisfied with the services provided by the company.
