Product Details:
|
| Keywords: | Sewage Treatment | Processing: | MBR |
|---|---|---|---|
| After Warranty Service: | Video Technical Support | Productivity: | 1000L/H |
| Certified: | ISO 9001, ISO 14001, CMA | Capacity: | 10-5000 M3/d |
| Control: | Automatic Control System | Application: | Sewage Treatment |
| High Light: | ISO14001 MBR Wastewater Treatment Equipment,CMA MBBR based sewage treatment plant,mbbr technology sewage treatment plant |
||
MBR Wastewater Treatment Equipment
MBR Membrane Integrated Sewage Treatment Equipment
MBR System Including:
♦ MBR membrane and MBR Skid ♦Collector Pipe and Aerator System
♦ Air Blower ♦Saution Pump
♦ Feed Water Pump ♦Dosing pump and system
♦ PLC Control system
| Keywords | Sewage Treatment | Processing | MBR |
|---|---|---|---|
| After Warranty Service | Video Technical Support | Productivity | 1000L/H |
| Certified | ISO 9001, ISO 14001, CMA | Capacity | 10-5000 M3/d |
| Control | Automatic Control System | Application | Sewage Treatment |
Structure
MBR integrated equipment mainly consists of five parts, such as grid well, anoxic tank, contact oxidation tank, regulating tank and anoxic tank.
1. Grid well: grid well is to isolate suspended solids and impurities in wastewater, so as not to affect the later treatment of equipment.
2. Anoxic tank: anoxic tank water into the anoxic tank for further decomposition of organic matter, sewage ammonia, nitrogen, phosphorus removal, anoxic tank upper sedimentation into contact oxidation tank, and sludge through the reflux pipe into the anoxic tank, so as to increase the concentration of anoxic tank, improve the anaerobic tank treatment efficiency. When the concentration of the anaerobic tank is saturated, the reflux valve is closed, and the valve flowing to the sludge concentration tank is opened to allow the sludge to flow directly into the sludge concentration tank.
3. Contact oxidation pool: when the water from the anaerobic pool flows into the contact oxidation pool, the sewage is fully contacted with the oxidizing bacteria (stereoelastic packing) in the contact oxidation pool, the sewage will decompose into CO2 and H2O, and the CO2 in the water will be discharged through the action of the blower. The sludge is composed of dead bodies of bacteria.
4. Regulating pool: According to the characteristics of domestic water, the time period of water discharge is not uniform, and the time period of their discharge is basically set as the peak period of early, middle and late. The regulating pool can adjust the uneven water supply, so that the post-processing can operate normally. A water level controller is set in the regulating pool, so that the automatic control can be effectively implemented.
5. Anaerobic tank: sewage into the anaerobic tank, through the mixing effect of the mixer sewage and anaerobic bacteria fully combined. Anaerobic tank can decompose microorganisms and organic matter in sewage to produce CO2 methane and other substances.
Technical process
AO+MBBR process: The MBBR process is a new and efficient wastewater treatment method, which combines the advantages of both traditional fluidized bed and biological contact oxidation processes.
This MBR System (Membrane Bioreactor) Treatment Plant is designed for municipal and industrial wastewater treatment, the combination of a membrane process like microfiltration or ultrafiltration with a suspended .The MBR system provides an aerobic microbiological treatment of waste water in which good efficiency is acquired and purified water of good quality is achieved.
PRODUCT DETAILS
PRODUCT ADVANTAGES
THE TREATMENT EFFECT IS OBVIOUS
After sewage treatment,it can be used for greening,toilet and other reclaimed water reuse
Application
Membrane bioreactor (MBR) is a new and efficient wastewater treatment technology which combines membrane separation and biological treatment. The denitrification mechanism of industrial nitrogenous wastewater includes two basic processes: nitrification and denitrification. Nitrification refers to the process of converting ammonia nitrogen into nitrate nitrogen, which is mainly completed by two types of aerobic autotrophic bacteria, nitrifying bacteria and nitrifying bacteria.
MBR membrane technology first by activated sludge removal of biodegradable organic pollutants in water, and then USES the membrane component force intercept the activated sludge bioreactor and the vast majority of suspended solids, implementation after purification of water and activated sludge solid-liquid separation, thus strengthened the biochemical reaction, improve the effect of the sewage treatment and water quality.
The MBR process has a significant effect on COD treatment in the wastewater of nitrogen fertilizer industry, and its biochemical strain regimen and acclimation stage is short, showing a stable effect from the third day. In stable treatment stage and normal operation stage, the COD removal rate can maintain high, and the removal rate is more than 90%. The average COD for export should be controlled below 30mg/L.

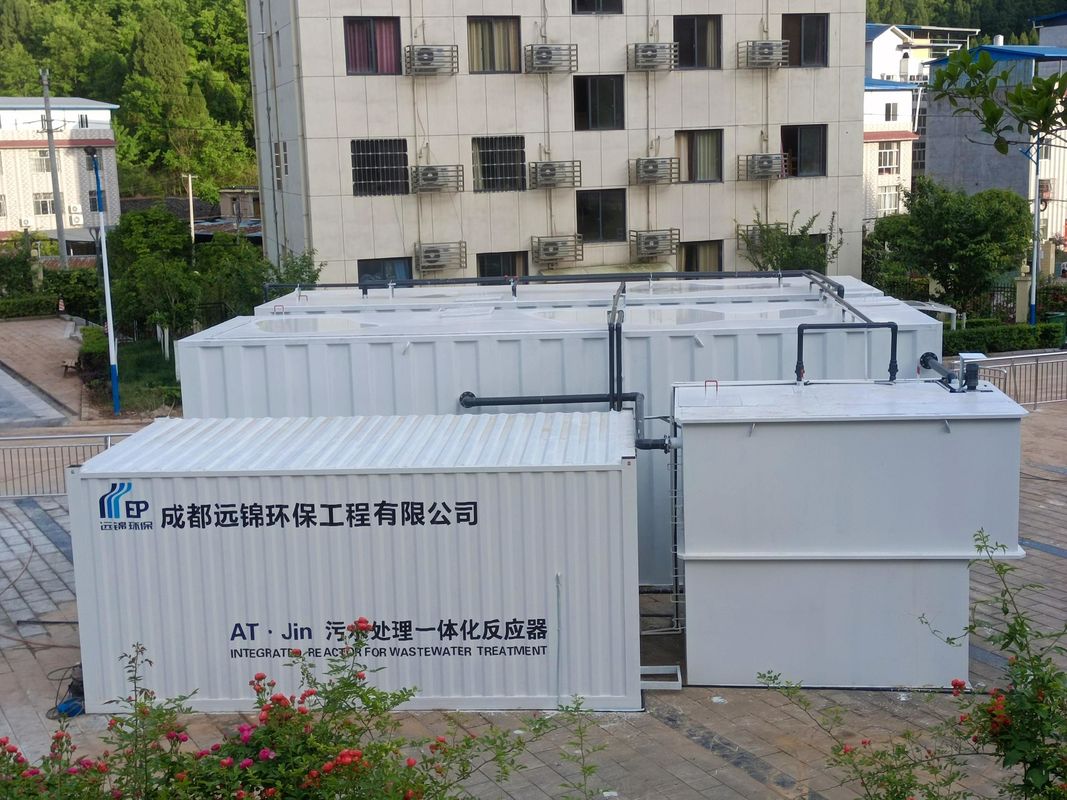

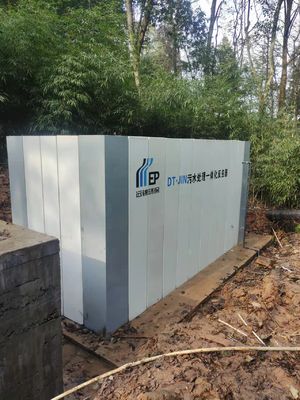

REAL SHOT DISPLAY
COMPANY REAL SHOW
Chengdu Yuanjin Environmental Protection Engineering Co., Ltd. was established in 2012 with a registered capital of 20 million. The production workshop covers an area of 1,400 square meters. There are more than 20 employees, including 2 senior engineers, 4 intermediate engineers, and 14 professional technicians; our company's technical team, all It is composed of a group of people who have worked in the field of water treatment for a long time. The company is a high-tech enterprise. It has obtained a number of certificates such as a patent certificate, nine software copyrights, a construction enterprise qualification certificate, and ISO9001 international quality management system certification. The environmental protection project will strive to build the most well-known Chengdu water treatment company. We have always adhered to the tenet of "quality first, customer first" and the management policy of "integrity, pragmatism, responsibility and efficiency", and advocated new ideas and new technologies. Tolerance for failure is the company's philosophy, which ensures that every employee of our company can pay for the company wholeheartedly, and that every one of our customers is satisfied with the services provided by the company.
