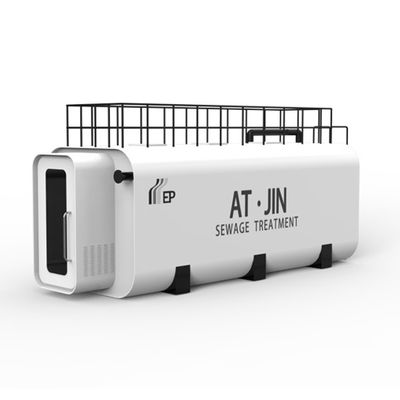

2000L/Hour MBR Wastewater Treatment Equipment High Efficiency Membrane Bioreactor MBR Plants

MBR Wastewater Treatment Equipment

Productivity 2000L/Hour Wastewater Treatment Plant AO+MBR

I. Product Overview
Membrane Bioreactor (MBR) is a kind of advanced technology developed since the end of 20th century which realized the efficient
combination of membrane separation technology with biological technology. The membrane separation technology replaces the
traditional active sludge method and the normal filter unit, its strong separation ability can make the SS turbidity near to be
zero. Hydraulic retention time (HRT) sludge age (SRT) is completely separated, the outlet water is good and stable in quality, it
can be reused without the third level treatment. Due to the high security and economic and effective water, it greatly expands the
scope of application of waste water recycling.

II. Technological Process and Features
l Technological Process:
Sewage → Grille → Regulating pond → MBR Bioreactor → Discharge(reuse)
1. Temperature: 5℃~45℃, average membrane aperture 0.10 μm.
2. PH: 2~12, membrane thickness: 40μm.
3. Outlet water turbidity: <1 NTU , outlet water SS <1mg/L.
4. Membrane area: 8m2, advised gas-water ratio: 25:1~30:1.
5. Operating pressure: -0.01 ~ -0.03MPa.

lII. Features:
1. Because of the high-efficiency solid-liquid separation, it can efficiently remove the SS, colloidal material and dead microbe
in the sewage, no need sedimentation tank, or filter device, nor other solid-liquid separation device.
2. The MBR can make the biomass in biological treatment unit maintain high concentration, thus highly improve the volume loading.
Meanwhile, the high efficient membrane separation can shorten the HRT. The device is with a compact structure and small space
occupation.
3. MBR can filter out bacteria, part of the harmful material such as virus, it can obviously save dosing disinfection dosage,
greatly improve the quality of the output water and reduce the operating cost and widen the scope of application of water.
4. Due to the strong interception function of MBR, it can keep the microbe in the reactor to avoid the loss of all kinds of
microbe groups, which is good for the growth of the bacteria (such as the nitrifying bacteria), at the same time, it can lengthen
the residence time of difficult degradable macromolecule organics to improve the decomposition so as to make the metabolic system
process smoothly. The system has a strong impact resistance and wide suitability.
5. It can realize the completely separation of HRT and SRT. By the extended aeration, it can consume the organics, it can
theoretically achieve the effect of no excess sludge emissions, thus reduce the surplus sludge treatment costs significantly.
6. The unique mode of operation makes the membrane surface no blocking, and the cleaning interval time is long. The way to clean
the membrane is easy, since the membrane module can be separately cleaned, thus, the maintenance is convenience and simple.
The module design make the machine flexible, it is easy to expand the volume.

PRODUCT DETAILS

PRODUCT ADVANTAGES

THE TREATMENT EFFECT IS OBVIOUS

After sewage treatment,it can be used for greening,toilet and other reclaimed water reuse

Application

Membrane bioreactor (MBR) is a new and efficient wastewater treatment technology which combines membrane separation and biological treatment. The denitrification mechanism of industrial nitrogenous wastewater includes two basic processes: nitrification and denitrification. Nitrification refers to the process of converting ammonia nitrogen into nitrate nitrogen, which is mainly completed by two types of aerobic autotrophic bacteria, nitrifying bacteria and nitrifying bacteria.

MBR membrane technology first by activated sludge removal of biodegradable organic pollutants in water, and then USES the membrane component force intercept the activated sludge bioreactor and the vast majority of suspended solids, implementation after purification of water and activated sludge solid-liquid separation, thus strengthened the biochemical reaction, improve the effect of the sewage treatment and water quality.

The MBR process has a significant effect on COD treatment in the wastewater of nitrogen fertilizer industry, and its biochemical strain regimen and acclimation stage is short, showing a stable effect from the third day. In stable treatment stage and normal operation stage, the COD removal rate can maintain high, and the removal rate is more than 90%. The average COD for export should be controlled below 30mg/L.
