120m3/D Fully Automatic MBR Wastewater Treatment Equipment Package Plants ODM For School

MBR Wastewater Treatment Equipment

120m3/D Fully Automatic And Unattended MBR Wastewater Treatment Equipment For School Sewage

Wastewater treatment equipment Description

MBR Wastewater Treatment Equipment is a process that combines the biological treatment process of activated sludge with the membrane separation process. MBRS come in two combinations, split and integral. In the split-type, the biological treatment unit and the membrane separation unit are placed separately, while in the one-piece, the membrane separation element is placed within the biological treatment unit. Generally, small systems tend to adopt integrated MBR, while large systems prefer to separate the membrane separation unit from the biological reaction cell, which is equivalent to replacing the secondary sedimentation cell in the traditional process.

Working Principle

The Mbr Wastewater Treatment Euipment series products adopt A2O+ MBR technology. The advantage of the A2O process is that it can make full use of nitrate nitrogen in the nitrification solution to oxidize BOD5, recover part of the oxygen demand of the nitrification reaction, and the alkalinity generated by the denitrification reaction can partially compensate for the alkalinity consumed by the nitrification reaction, so For urban sewage with low nitrogen concentration, it is not necessary to add alkali to adjust pH. Through the efficient separation of MBR membrane, the separation effect is much better than that of traditional sedimentation tanks, the treated effluent is extremely clear, and the suspended solids and turbidity are close to zero.

Influent and effluent quality indicators

Device parameters

Application

Membrane bioreactor (MBR) is a new and efficient wastewater treatment technology which combines membrane separation and biological treatment. The denitrification mechanism of industrial nitrogenous wastewater includes two basic processes: nitrification and denitrification. Nitrification refers to the process of converting ammonia nitrogen into nitrate nitrogen, which is mainly completed by two types of aerobic autotrophic bacteria, nitrifying bacteria and nitrifying bacteria.

MBR membrane technology first by activated sludge removal of biodegradable organic pollutants in water, and then USES the membrane component force intercept the activated sludge bioreactor and the vast majority of suspended solids, implementation after purification of water and activated sludge solid-liquid separation, thus strengthened the biochemical reaction, improve the effect of the sewage treatment and water quality.

The MBR process has a significant effect on COD treatment in the wastewater of nitrogen fertilizer industry, and its biochemical strain regimen and acclimation stage is short, showing a stable effect from the third day. In stable treatment stage and normal operation stage, the COD removal rate can maintain high, and the removal rate is more than 90%. The average COD for export should be controlled below 30mg/L.

Advantages of MBR process compared with traditional process

Greatly reduce the footprint, thus reducing the cost of civil engineering;

◇ Better impurity removal rate, no caking over the pool phenomenon;

◇ Better effluent quality, SDI≤3;

Improved biochemical treatment process, increased volume load, extended HRT and SRT, greatly reduced sludge discharge, thus reducing the cost of sludge treatment; Conducive to the removal of ammonia nitrogen;

◇ more stable operation.

PRODUCT DETAILS

PRODUCT ADVANTAGES

THE TREATMENT EFFECT IS OBVIOUS

After sewage treatment,it can be used for greening,toilet and other reclaimed water reuse

APPLICABLE TO ALL SCENARIOS

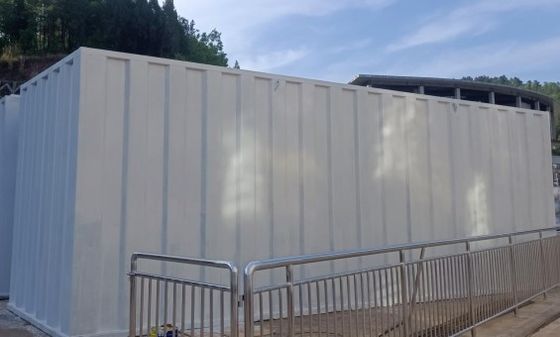

REAL SHOT DISPLAY

COMPANY REAL SHOW

Chengdu Yuanjin Environmental Protection Engineering Co., Ltd. was established in 2012 with a registered capital of 20 million. The production workshop covers an area of 1,400 square meters. There are more than 20 employees, including 2 senior engineers, 4 intermediate engineers, and 14 professional technicians; our company's technical team, all It is composed of a group of people who have worked in the field of water treatment for a long time. The company is a high-tech enterprise. It has obtained a number of certificates such as a patent certificate, nine software copyrights, a construction enterprise qualification certificate, and ISO9001 international quality management system certification. The environmental protection project will strive to build the most well-known Chengdu water treatment company. We have always adhered to the tenet of "quality first, customer first" and the management policy of "integrity, pragmatism, responsibility and efficiency", and advocated new ideas and new technologies. Tolerance for failure is the company's philosophy, which ensures that every employee of our company can pay for the company wholeheartedly, and that every one of our customers is satisfied with the services provided by the company.

FAQ

1.Why choose us?

1) Yuanjin has 12 years of experience in wastewater and sludge treatment.

2) We introduce advanced technology and experience at home and abroad, and have been committed to the research and development of water treatment equipment for a long time.

3) We only use the best parts from the best suppliers.

​4) Yuanjin's technical team is composed of a group of people with long-term working experience in the field of water treatment to provide customers with high-quality services.

2. What is the price of the product?
According to the amount of water treated, the price is different, and the unit price range is 145~866 $/m3·d.

3. What is the effect of the treated water?
1) The treated pure water can be directly consumed and meets the World Health Organization (WHO) drinking water quality standards.
2) The sewage can be directly discharged after treatment, which is environmentally friendly and meets the requirements of international sewage treatment discharge standards.
