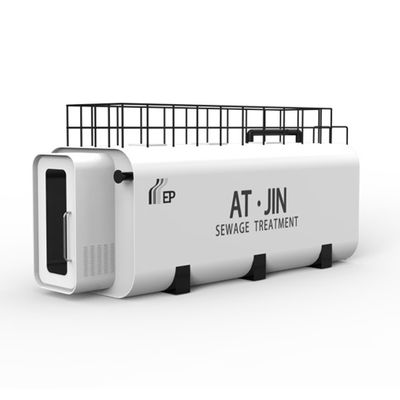

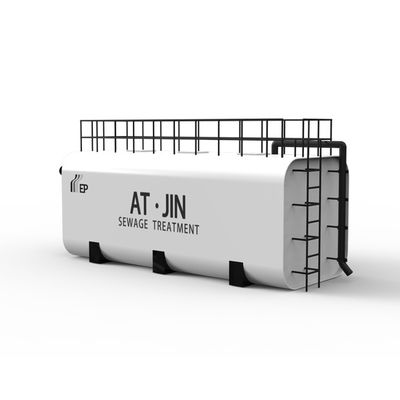

50m3/D MBR Sewage Treatment Plant Ultrafiltration Membrane MBR Package Plants For Circulating Water

MBR Wastewater Treatment Equipment

50m3/d Ultrafiltration Membrane MBR Wastewater Treatment Equipment For Circulating Water Utilization

Wastewater treatment equipment Description

MBR Wastewater Treatment Equipment is a new water treatment technology that combines membrane separation technology and biotechnology organically. It uses membrane separation equipment to trap activated sludge and macromolecular organic matter in biochemical reaction tank, eliminating the need for secondary sedimentation tank. Membrane - bioreactor technology greatly enhances the function of bioreactor through membrane separation technology, so that the concentration of activated sludge is greatly increased, and the hydraulic retention time (HRT) and sludge retention time (SRT) can be controlled respectively.
Influent and effluent quality indicators

Device parameters


Characteristics of the equipment

1) High removal rate of pollutants, strong resistance to sludge bulking ability, stable and reliable effluent quality, no suspended matter in the effluent;

2) Membrane bioreactor can control sludge age SRT and hydraulic retention time HRT respectively, so its design and operation are greatly simplified;

3) The mechanical interception of the membrane avoids the loss of microorganisms, and the bioreactor can maintain a high sludge concentration, so as to improve the volume load and reduce the sludge load, with strong impact resistance;

4) Due to the long SRT, the bioreactor plays the role of "sludge nitrification tank", thus significantly reducing the sludge output, low surplus sludge output, low sludge treatment cost;

5) SRT is prolonged due to the interception effect of the membrane, which creates microorganisms conducive to slow proliferation. For example, the growth environment of nitrifying bacteria can improve the nitrification capacity of the system, at the same time, it is conducive to improve the treatment efficiency of refractory macromolecular organic matter and promote its thorough decomposition;

6) The activated sludge in the MBR aeration tank will not be lost along with the effluent. In the process of operation, the activated sludge will change due to the change of the concentration of organic matter, and achieve a dynamic balance, which makes the effluent of the system stable and has the characteristics of impact load resistance;

7) The larger hydraulic cycle leads to the even mixing of sewage, which makes the activated sludge have good dispersion and greatly improves the specific surface area of the activated sludge. The high dispersion of activated sludge in MBR system is another reason to improve the effect of water treatment. This is the common biochemical water treatment technology to form larger micelles is difficult to compare;

8) Membrane bioreactor is easy to integrate, easy to realize automatic control, easy to operate and manage;

9) MBR process omits the secondary sedimentation tank and reduces the floor area.


Equipment Advantages

MBR combines membrane separation technology in separation engineering with traditional wastewater biological treatment technology, which greatly improves solid-liquid separation efficiency. Moreover, the biochemical reaction rate was increased due to the increase of activated sludge concentration in the aeration tank and the emergence of specific bacteria (especially dominant bacteria) in the sludge. At the same time, by reducing the F/M ratio to reduce the amount of residual sludge production (even 0), so as to basically solve many outstanding problems existing in the traditional activated sludge process. MBR combines membrane separation technology in separation engineering with traditional wastewater biological treatment technology, which greatly improves solid-liquid separation efficiency. Moreover, the biochemical reaction rate was increased due to the increase of activated sludge concentration in the aeration tank and the emergence of specific bacteria (especially dominant bacteria) in the sludge. At the same time, by reducing the F/M ratio to reduce the amount of residual sludge production (even 0), so as to basically solve many outstanding problems existing in the traditional activated sludge process.


PRODUCT DETAILS



PRODUCT ADVANTAGES



APPLICATION





REAL SHOT DISPLAY



COMPANY REAL SHOW



Chengdu Yuanjin Environmental Protection Engineering Co., Ltd. was established in 2012 with a registered capital of 20 million. The production workshop covers an area of 1,400 square meters. There are more than 20 employees, including 2 senior engineers, 4 intermediate engineers, and 14 professional technicians; our company's technical team, all It is composed of a group of people who have worked in the field of water treatment for a long time. The company is a high-tech enterprise. It has obtained a number of certificates such as a patent certificate, nine software copyrights, a construction enterprise qualification certificate, and ISO9001 international quality management system certification. The environmental protection project will strive to build the most well-known Chengdu water treatment company. We have always adhered to the tenet of "quality first, customer first" and the management policy of "integrity, pragmatism, responsibility and efficiency", and advocated new ideas and new technologies. Tolerance for failure is the company's philosophy, which ensures that every employee of our company can pay for the company wholeheartedly, and that every one of our customers is satisfied with the services provided by the company.

FAQ
1.Why choose us?
1) Yuanjin has 12 years of experience in wastewater and sludge treatment.
2) We introduce advanced technology and experience at home and abroad, and have been committed to the research and development of water treatment equipment for a long time.
3) We only use the best parts from the best suppliers.
​4) Yuanjin's technical team is composed of a group of people with long-term working experience in the field of water treatment to provide customers with high-quality services.

2. What is the price of the product?
According to the amount of water treated, the price is different, and the unit price range is 145~866 $/m3·d.
3. What is the effect of the treated water?
1) The treated pure water can be directly consumed and meets the World Health Organization (WHO) drinking water quality standards.
2) The sewage can be directly discharged after treatment, which is environmentally friendly and meets the requirements of international sewage treatment discharge standards.
