Product Details:
|
| Product Name: | Integrated Sewage Treatment Equipment | Material: | Carbon Steel |
|---|---|---|---|
| Colour: | White、Blue、black | Technology: | AO |
| Voltage: | 220V/50HZ | Capacity: | 40m3/h |
| Type: | Buried | Operation Mode: | Automatic |
| Size: | 1400*1400*1700mm | Water Quality: | ≤200mg/L |
| Weight: | 400kg | ||
| High Light: | 40m3/D Sewage Treatment Device,CMA Sewage Treatment Device,AO Automatic Integrated Sewage Treatment Equipment |
||
40m3/D Comprehensive Sewage Treatment Device For Treating Hospital Sewage
40m3/D Integrated Sewage Treatment Equipment Treats Children's Hospital Sewage
The principle of A/O integrated sewage treatment equipment is to use microorganisms to reduce nitrate nitrogen and nitrite nitrogen in sewage into gaseous nitrogen and escape, while decomposing difficult to degrade large molecule organic matter into small molecule easily degradable substances, which has the functions of denitrification, hydrolysis, and degradation of some organic matter. In the aerobic tank, most of the organic matter is treated by microorganisms and enters the secondary sedimentation tank for mud water separation. After disinfection, it is discharged. The A/O process degrades organic matter while denitrification, greatly reducing oxygen demand, and is an energy-saving biological treatment technology. In order to maintain a high nitrification rate, the reaction residence time is longer than that of the ordinary activated sludge method, the sludge settling performance is good, the sludge growth rate is low, the remaining sludge amount is small, and the settling performance is good.
Characteristics of hospital sewage
Hospital sewage is mainly from the examination rooms, wards, laboratories, operating rooms, laundry rooms, administrative departments, canteens, dormitories and other sewage discharge, the main pollutants are organic pollutants, pathogenic microorganisms and viruses. Now the hospital sewage is discharged only after the grille slagging and disinfection. Chlorine dioxide disinfectant is used. The remaining chlorine and bacteriological indicators can reach the standard, but the organic matter has not been removed. In order to fully meet the standards, the hospital added the biological aerated filter sewage treatment process to treat sewage.
Influent and effluent quality indicators
| Project | PH | COD | BOD5 | SS | NH3-N | TP |
| Incoming water quality | 6-9 | <=350mg/L | <=180mg/L | <=200mg/L | <=30 | <=5mg/L |
| Effluent quality | 6-9 | <=50mg/L | <=10mg/L | <=10mg/L | <=5 | <=0.5mg/L |
Device parameters
| PT·Jin·1 | PT·Jin·2 | ||
| <Emission Standard of Pollutants for Urban Sewage TreatmentPlants>GB18918-2002Grade A standard | <Water Pollution Discharge Standard for Medical lnstitutions>GB18466-2005Emission Standards | ||
| throughput | size | throughput | size |
| (m3/d) | (mm) | (m3/d) | (mm) |
| 10 | 5200*1500*2000 | 10 | 5200*1500*2000 |
| 20 | 4700*2500*2500 | 20 | 4700*2500*2500 |
| 50 | 5800*3000*3000 | 50 | 5800*3000*3000 |
| 100 | A:7500*3000*3000 B:3500*3000*3000 |
100 |
A:6500*3000*3000 B:3500*3000*3000 |
| 150 | A:10500*3000*3000 B:5000*3000*3000 |
150 | A:6500*3000*3000 B:3500*3000*3000 |
| 200 | A:10000*3000*3000 B:8000*3000*3000 |
200 | A:8500*3000*3000 B:6000*3000*3000 |
Application
Residential/village/market town/station/airport/harbour terminal/ship factory/tourist spot/earth warehouse/scenic area similar to other waste water
Advantages
1. The mutual balance between sludge age and phosphorus removal
2. The entire equipment processing system is equipped with a fully automatic electrical control system and equipment fault alarm system, ensuring safe and reliable operation
3. Fully automated control, simple equipment maintenance and management, unmanned, and regular inspections
PRODUCT DETAILS
SEWAGE CAN BE RECYCLED AFTER TREATMENT
ADAPT TO A VARIETY OF POLLUTION SOURCES

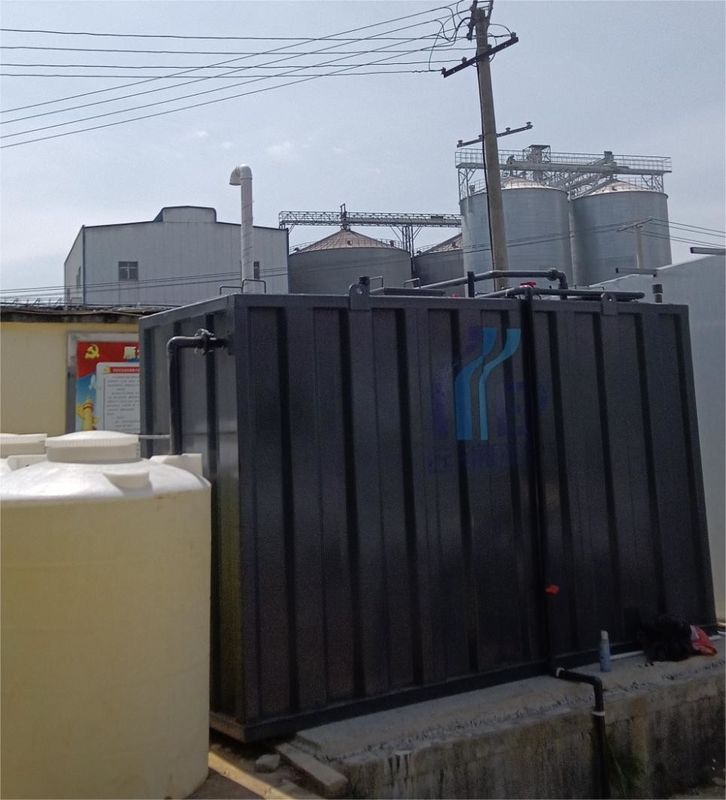

REAL SHOT DISPLAY
COMPANY REAL SHOW
Chengdu Yuanjin Environmental Protection Engineering Co., Ltd. was established in 2012 with a registered capital of 20 million. The production workshop covers an area of 1,400 square meters. There are more than 20 employees, including 2 senior engineers, 4 intermediate engineers, and 14 professional technicians; our company's technical team, all It is composed of a group of people who have worked in the field of water treatment for a long time. The company is a high-tech enterprise. It has obtained a number of certificates such as a patent certificate, nine software copyrights, a construction enterprise qualification certificate, and ISO9001 international quality management system certification. The environmental protection project will strive to build the most well-known Chengdu water treatment company. We have always adhered to the tenet of "quality first, customer first" and the management policy of "integrity, pragmatism, responsibility and efficiency", and advocated new ideas and new technologies. Tolerance for failure is the company's philosophy, which ensures that every employee of our company can pay for the company wholeheartedly, and that every one of our customers is satisfied with the services provided by the company.
FAQ
1.Why choose us?
1) Yuanjin has 12 years of experience in wastewater and sludge treatment.
2) We introduce advanced technology and experience at home and abroad, and have been committed to the research and development of water treatment equipment for a long time.
3) We only use the best parts from the best suppliers.
4) Yuanjin's technical team is composed of a group of people with long-term working experience in the field of water treatment to provide customers with high-quality services.
2. What is the price of the product?
According to the amount of water treated, the price is different, and the unit price range is 145~866 $/m3·d.
3. What is the effect of the treated water?
1) The treated pure water can be directly consumed and meets the World Health Organization (WHO) drinking water quality standards.
2) The sewage can be directly discharged after treatment, which is environmentally friendly and meets the requirements of international sewage treatment discharge standards.
