80m3/H Ceramic Tubular Membrane For Plant Extraction

MBR Wastewater Treatment Equipment

80m3/H Ceramic Tubular Membrane For Plant Extraction

Equipment introduction

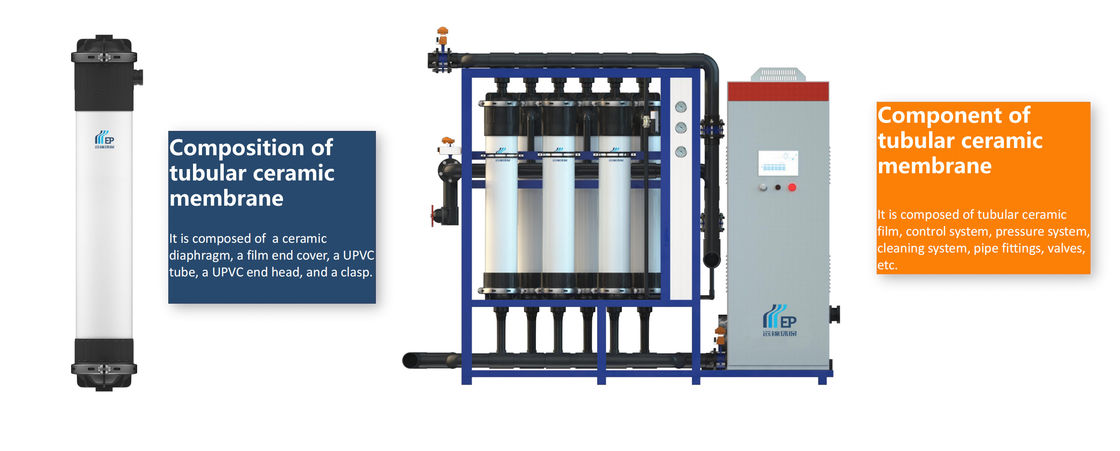

Tubular ceramic membrane, also known as inorganic ceramic membrane, is an asymmetric membrane formed by inorganic ceramic material prepared by special technology.

Ceramic membrane filter is a kind of equipment for filtering raw water and waste water used in industrial production, so that the waste water or raw water through the ceramic membrane filter to meet the specified discharge standards or recycling, so the selection and use of tubular ceramic membrane is very important.

Tubular ceramic film use

The core component of the ceramic membrane filter is the ceramic membrane filter tube, which is based on acid-resistant ceramic particles or quartz, corundum sand and other main raw materials, adding a small amount of inorganic binder and zirconia reinforcement and other raw materials for scientific ratio, through the process of plain burning, crushing, grading, molding, film processing and other processes. Ceramic membrane has many advantages such as high separation efficiency, stable effect, good chemical stability, acid and alkali resistance, organic solvent resistance, bacteria resistance, high temperature resistance, pollution resistance, high mechanical strength, good regeneration performance, simple separation process, low energy consumption, easy operation and maintenance, long service life, etc. Widely used in seawater, caustic soda, food, beverage, plant (medicine) deep processing, biomedicine, fermentation, fine chemical industry and many other fields, can be used in the process of separation, clarification, purification, concentration, sterilization and so on.

Tubular ceramic membrane separation principle

What determines the separation effect of the membrane is the physical structure of the membrane, the shape and size of the pores.

Ceramic membrane tube wall is densely covered with microholes, under the action of pressure, the raw material liquid flows in the membrane tube or outside the membrane, small molecular substances (or liquid) through the membrane, macromolecular substances (or solid) are trapped by the membrane, so as to achieve the purpose of separation, concentration, purification and environmental protection.

Tubular ceramic membrane fluid separation process: the raw material liquid flows at high speed in the membrane tube, and the clarified penetrant containing small molecular components passes through the membrane in the vertical direction under pressure, and the turbidized concentrated liquid containing large molecular components is trapped by the membrane, so that the fluid can achieve the purpose of separation, concentration and purification.

Tubular ceramic membrane cleaning

Cleaning requirements for ceramic membrane filters

(1) The inlet water of the pressure type ceramic membrane filter should be automatically adjusted, and it is appropriate to use a pump or regulating valve controlled by frequency conversion.

(2) Ceramic membrane components should be equipped with chemical cleaning and special backwash pumps. Backwashing water should be produced by ceramic membrane filter, and fresh water should be used for chemical cleaning. Chemical cleaning can improve membrane flux and is an effective method for membrane flux recovery and regeneration.

(3) The choice of chemical cleaning solution should be determined according to the influent water quality, membrane pollutant composition, membrane component type and membrane material.

The cleaning procedure is generally washed, pickled and washed according to time.
