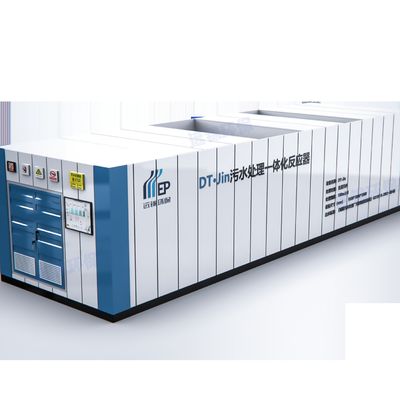

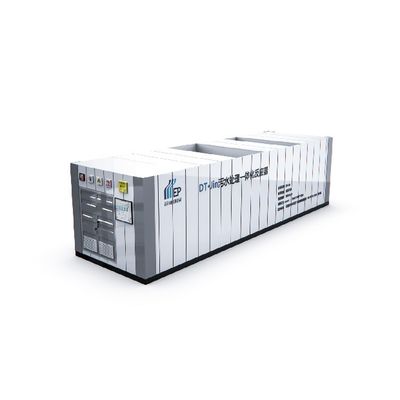

120m3/D Membrane MBR Type Sewage Treatment Plant For Coal Miners' Living Quarters

MBR Wastewater Treatment Equipment

15kW Mbr Treatment System For Outpatient Service Of Sewage

Influent and effluent quality indicators

Device parameters

Technical features:

1. The complete set of equipment is simple to construct and easy to operate. All mechanical equipment is automatically controlled. The complete set of equipment can be buried underground or placed on the ground. The surface above the equipment can be used for greening or other land, without the need for building, heating, and insulation.

2. Able to treat comprehensive wastewater from domestic systems and similar organic wastewater;

3. It adopts glass fiber reinforced plastic and stainless steel structure, which has excellent characteristics such as corrosion resistance and anti-aging. There is no need to build houses, heating and heat preservation, and the service life is more than 50 years;

4. Taking into account the problem of local burial depth, the MBR integrated sewage treatment equipment has been specially strengthened on the outside. The equipment room is built inside the equipment and buried together with the equipment. The exhaust port is reserved on the top plate, and the Elbow treatment to prevent raining and irrigation.

5. The biochemical tank adopts the biological contact oxidation method, the volume load of its filler is relatively low, the microorganisms are in their own oxidation stage, and the amount of mud is small. It only needs to discharge the mud once more than three months (90 days) (suction with a dung truck or Dehydrated into mud cakes for export).

6. The entire equipment processing system is equipped with a fully automatic electrical control system and equipment failure alarm system, which is safe and reliable in operation. Generally, there is no need for special personnel to manage, and only need to maintain and maintain the equipment in a timely manner.

Technical process

AO+MBBR process: The MBBR process is a new and efficient wastewater treatment method, which combines the advantages of both traditional fluidized bed and biological contact oxidation processes.

PRODUCT DETAILS

PRODUCT ADVANTAGES

THE TREATMENT EFFECT IS OBVIOUS

After sewage treatment,it can be used for greening,toilet and other reclaimed water reuse

Application

Membrane bioreactor (MBR) is a new and efficient wastewater treatment technology which combines membrane separation and biological treatment. The denitrification mechanism of industrial nitrogenous wastewater includes two basic processes: nitrification and denitrification. Nitrification refers to the process of converting ammonia nitrogen into nitrate nitrogen, which is mainly completed by two types of aerobic autotrophic bacteria, nitrifying bacteria and nitrifying bacteria.

MBR membrane technology first by activated sludge removal of biodegradable organic pollutants in water, and then USES the membrane component force intercept the activated sludge bioreactor and the vast majority of suspended solids, implementation after purification of water and activated sludge solid-liquid separation, thus strengthened the biochemical reaction, improve the effect of the sewage treatment and water quality.

The MBR process has a significant effect on COD treatment in the wastewater of nitrogen fertilizer industry, and its biochemical strain regimen and acclimation stage is short, showing a stable effect from the third day. In stable treatment stage and normal operation stage, the COD removal rate can maintain high, and the removal rate is more than 90%. The average COD for export should be controlled below 30mg/L.

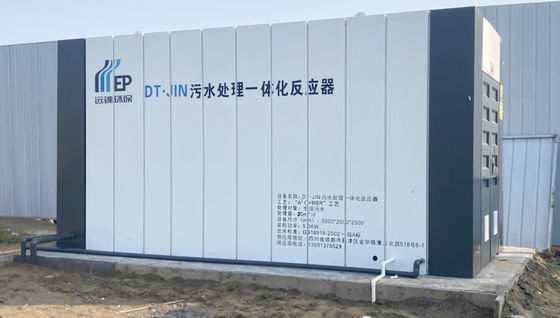

REAL SHOT DISPLAY

COMPANY REAL SHOW

Chengdu Yuanjin Environmental Protection Engineering Co., Ltd. was established in 2012 with a registered capital of 20 million. The production workshop covers an area of 1,400 square meters. There are more than 20 employees, including 2 senior engineers, 4 intermediate engineers, and 14 professional technicians; our company's technical team, all It is composed of a group of people who have worked in the field of water treatment for a long time. The company is a high-tech enterprise. It has obtained a number of certificates such as a patent certificate, nine software copyrights, a construction enterprise qualification certificate, and ISO9001 international quality management system certification. The environmental protection project will strive to build the most well-known Chengdu water treatment company. We have always adhered to the tenet of "quality first, customer first" and the management policy of "integrity, pragmatism, responsibility and efficiency", and advocated new ideas and new technologies. Tolerance for failure is the company's philosophy, which ensures that every employee of our company can pay for the company wholeheartedly, and that every one of our customers is satisfied with the services provided by the company.
