Product Details:
|
| Certification: | CE Certificate | Product Name: | Edi And RO Water Plant |
|---|---|---|---|
| Material: | SS304 | Productivity: | 25T/H |
| Power Supply: | 220V/50Hz And 380V/50Hz | Function: | Water Purification |
| Application: | Water Purification | Core Components: | Pressure Vessel, Pump, Motor, PLC |
| Operating: | Auto | ||
| High Light: | 25T commercial water filter plant,25T RO EDI Water Plant,Electrodeionization edi pure water |
||

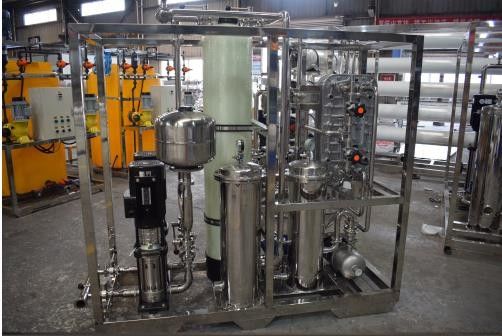

25T Industry Pure Water EDI Electrodeioization Ro Water Treatment System Plant
EDI water purification system is also called electrodeionization. It's skillfully combined electroosmosis technology with ion exchange technology. By means of the selectivity permeation effect on anion and cation by anion and cation exchange membrane, and exchange effect on ion by ion exchange resin. Under direct-current electric field, realize the directed migration of ions, thus complete heavily salt removing, meanwhile, hydrogen ion and hydroxyl ion generated by water electrodeionization will make the ion exchange resin regeneration, so it can produce ultrapure water continuously without acid-base chemical regeneration.
1.EDI technology advantages
1). high efficiency produce ultrapure water, stabilization of water quality
2). witout acid-base regenerant, low cost of operation
3). work continuously, no need to stop because of regeneration
4). operator avoid to touch with acid-base, apply safely and reliably.
5). equipment structure compact, small occupied space, easy for installation
6). easily realize full automatic control, easy for operation, low failure rate.
7). no regenerated water discharge, accord with environmental care requirement
2. EDI product application
EDI is more and more widely used in semiconductor, micro-electronics, power generating industry, pharmaceuticals industy, fine chemical engineering etc. area.
3.Note:
water flows to EDI system must be the water from RO pure water machine or the same good quality water.
Pure Water Requirements For Various Industries
| Industry Type | Use | Water Quality Requirement |
| Hardware electroplating factory | Production of plating parts rinse with pure water | Resistivity≤10～20μs/cm |
| Plastic electroplating factory | Production of plating parts rinse water | Resistivity≤10μs/cm |
| Metal plastic gold plated silver | Production of plating parts rinse water | Resistivity≤2μs/cm |
| Circuit board factory | Microetching rinse pure water | Resistivity≤10μs/cm |
| Electronics, electric appliance factory | Pure water for industrial use | Resistivity≥2MΩ.CM |
| Glass shell production plant | Glass shell production rinse water | Resistivity≥2MΩ.CM |
| Aluminum alloy production plant | Pure water for coating rinse | Resistivity≥2MΩ.CM |
| Precision hardware components factory | Surface treatment rinse with pure water | Resistivity≥5MΩ.CM |
| Car paint factory | Pure water for washing painted surface | Resistivity≥5MΩ.CM |
| Dyeing factory | Printing and dyeing with pure water | Resistivity≥2MΩ.CM |
| Nimh battery, electronics factory | Ultrapure water for industrial use | Resistivity≥10MΩ.CM |
| Color display production plant | Rinse the picture tube with ultrapure water | Resistivity≥18MΩ.CM |
| The computer factory | Hard disk production rinse ultrapure water | Resistivity≥18MΩ.CM |
| Laboratory use | Electron-grade ultrapure water | Resistivity≥18MΩ.CM |
| Coating glass factory | Electronic ultrapure water for film plating | Resistivity≥17～18MΩ.CM |
| Float glass factory | Ultrapure water for coating industry | Resistivity≥17MΩ.CM |
| Semiconductor factory | Ultrapure water for production | Resistivity≥15MΩ.CM |
| Liquid crystal display plant | Ultrapure water for LCD flushing | Resistivity≥12～15MΩ.CM |
Scope Of Application
◆ Cosmetics Industry
Pure water for skin care products, shampoo, hair dye, toothpaste, and hand sanitizer
◆ Food, Beverage, Purified Water Industry
The production of water for food and beverage production as well as pure water
◆ Electronics Industry
Aluminum foil cleaning; Vacuum tube spraying liquid dispensing; Clear tube glass shell cleaning, precipitation, wetting, film washing, tube neck cleaning;
◆ Battery Industry
Pure water for battery production, pure water for lithium battery production, and pure water for solar cell production
Pure water for concrete admixture preparation
High purity water for glass coating, glass products cleaning water, lamp cleaning water
◆ Textile Printing And Dyeing Industry
Pure water for printing and dyeing auxiliary preparation, pure water for wipes, and pure water for facial masks
◆ Pure Water For Ultrasonic Cleaning
◆ Coating Industry
coating preparation with pure water, electroplating preparation cleaning water, electrophoresis paint preparation cleaning water
DETAILS
Production Workshop
FAQ
1. Why choose us?
1) Yuanjin has 12 years of experience in wastewater and sludge treatment.
2) We introduce advanced technology and experience at home and abroad, and have been committed to the research and development of water treatment equipment for a long time.
3) We only use the best parts from the best suppliers.
4) Yuanjin's technical team is composed of a group of people with long-term working experience in the field of water treatment to provide customers with high-quality services.
