Product Details:
|
| Certification: | GMP,CE | Product Name: | RO EDI Water Plant |
|---|---|---|---|
| Material: | SUS304 | Capacity: | 500L/H |
| Voltage: | 220/380v | Function: | Water Purification Machine |
| Control System: | Automatic Or Manual | Core Components: | Gearbox, Pressure Vessel, Pump, Gear, Bearing, Engine, Motor, |
| High Light: | Water Disinfection RO EDI Water Plant,industrial reverse osmosis machine 500L/H,ro water treatment machine 500L/H |
||

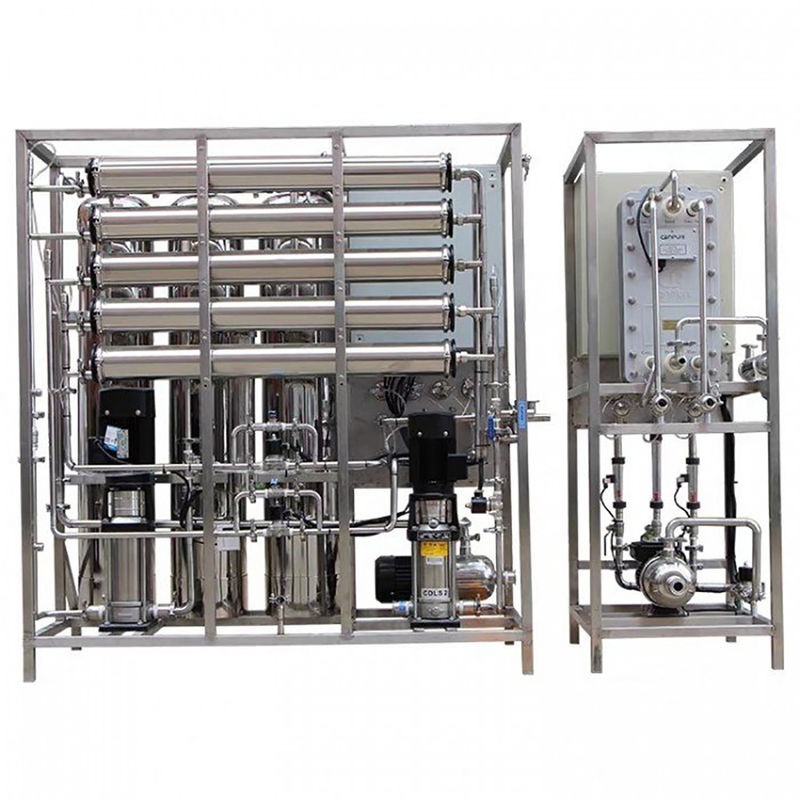

Water Disinfection RO Water Treatment Machine Equipment System Plant
RO EDI WATER PLANT DESCRIPTION
| Product Name | RO EDI Water Plant | Material | SUS304 |
|---|---|---|---|
| Capacity | 500L/H | Voltage | 220/380v |
| Function | Water Purification Machine | Control System | Automatic Or Manual |
| Certification | GMP,CE | Core Components | Gearbox, Pressure Vessel, Pump, Gear, Bearing, Engine, Motor, |
RO+EDI watertreatment equipment, the use of pretreatment, reverse osmosis technology, ultra-purification treatment and post-stage treatment methods, the conductive medium in the water is almost completely removed, and the water does not dissociate the colloid substances, gases and organic matter are removed to a very low degree of water treatment equipment.
EDI (Elcctrodeionization) is a pure water manufacturing technique that combines ion exchange technique, ion exchange membrane technique and ion electromigration technique. It cleverly combines electrodialysis and ion exchange technology, using high voltage electrodes at both ends to make charged ions move in water, and with ion exchange resin and selective resin film to accelerate ion movement removal, so as to achieve the purpose of water purification. During EDI desalting, ions are removed through ion-exchange membranes under the action of electric field. At the same time, water molecules generate hydrogen ions and hydroxide ions under the electric field, and these ions continuously regenerate the ion exchange resin to keep the ion exchange resin in the best condition. The equipment has the advantages of compact structure, small area, high unit water production, less energy consumption, thorough removal of impurities, wide range of use, high degree of automation, easy to use and operation, no pollution and so on.
Pure Water Requirements For Various Industries
| Industry Type | Use | Water Quality Requirement |
| Hardware electroplating factory | Production of plating parts rinse with pure water | Resistivity≤10～20μs/cm |
| Plastic electroplating factory | Production of plating parts rinse water | Resistivity≤10μs/cm |
| Metal plastic gold plated silver | Production of plating parts rinse water | Resistivity≤2μs/cm |
| Circuit board factory | Microetching rinse pure water | Resistivity≤10μs/cm |
| Electronics, electric appliance factory | Pure water for industrial use | Resistivity≥2MΩ.CM |
| Glass shell production plant | Glass shell production rinse water | Resistivity≥2MΩ.CM |
| Aluminum alloy production plant | Pure water for coating rinse | Resistivity≥2MΩ.CM |
| Precision hardware components factory | Surface treatment rinse with pure water | Resistivity≥5MΩ.CM |
| Car paint factory | Pure water for washing painted surface | Resistivity≥5MΩ.CM |
| Dyeing factory | Printing and dyeing with pure water | Resistivity≥2MΩ.CM |
| Nimh battery, electronics factory | Ultrapure water for industrial use | Resistivity≥10MΩ.CM |
| Color display production plant | Rinse the picture tube with ultrapure water | Resistivity≥18MΩ.CM |
| The computer factory | Hard disk production rinse ultrapure water | Resistivity≥18MΩ.CM |
| Laboratory use | Electron-grade ultrapure water | Resistivity≥18MΩ.CM |
| Coating glass factory | Electronic ultrapure water for film plating | Resistivity≥17～18MΩ.CM |
| Float glass factory | Ultrapure water for coating industry | Resistivity≥17MΩ.CM |
| Semiconductor factory | Ultrapure water for production | Resistivity≥15MΩ.CM |
| Liquid crystal display plant | Ultrapure water for LCD flushing | Resistivity≥12～15MΩ.CM |
Scope Of Application
◆ Cosmetics Industry
Pure water for skin care products, shampoo, hair dye, toothpaste, and hand sanitizer
◆ Food, Beverage, Purified Water Industry
The production of water for food and beverage production as well as pure water
◆ Electronics Industry
Aluminum foil cleaning; Vacuum tube spraying liquid dispensing; Clear tube glass shell cleaning, precipitation, wetting, film washing, tube neck cleaning;
◆ Battery Industry
Pure water for battery production, pure water for lithium battery production, and pure water for solar cell production
Pure water for concrete admixture preparation
High purity water for glass coating, glass products cleaning water, lamp cleaning water
◆ Textile Printing And Dyeing Industry
Pure water for printing and dyeing auxiliary preparation, pure water for wipes, and pure water for facial masks
◆ Pure Water For Ultrasonic Cleaning
◆ Coating Industry
coating preparation with pure water, electroplating preparation cleaning water, electrophoresis paint preparation cleaning water
DETAILS
Production Workshop
