Product Details:
|
| Product Name: | MBR Wastewater Treatment Equipment | Technology: | AAO+MBR |
|---|---|---|---|
| Voltage: | 380V | Maximum Throughout: | 80m3/d |
| Application: | Sewage Treatment, Industry, Water Disinfection, Hospital Etc., Organic Wastewater Treatment | Certified: | ISO 9001, ISO 14001, CMA |
| High Light: | MBR Wastewater Treatment Equipment,AAO mbr stp plant,compact stp plant |
||
MBR Wastewater Treatment Equipment
AAO+MBR Automatic Control MBR Wastewater Treatment Plant
| Product Name | MBR Wastewater Treatment Equipment | Colour | Whiteaccording Customers Demands |
|---|---|---|---|
| Material | Carbon Steel | Technology | AAO+MBR |
| Voltage | 380V | Maximum Throughout | 130m3/d |
| Weight | ≥5.5T | Certification | ISO9001 |
Compact design
1. Compact design, small size, easy transportation.
2. The modular design supports free combination of various process systems and can be used in series and in parallel.
3. Prefabricated compact system, easy and fast installation on site.
4. The whole system has advantages of high suspended biomass, stable operation, good processing effect, and strong impact resistance.
5. Long sludge retention time, small amount of the sludge output, and free from sludge bulking problem.
6. A variety of service solutions can be provided to facilitate centralized management for single unit, multiple units and decentralized equipment.
7. Intelligent management can be realized on GSD system or customer's own platform with flexible choices.
8. Monitor real-time equipment operation and water quality, including SMS or software abnormal alarm function which reduces losses.
9. The professional decision-making module provides maintenance assistance, including a fault warning function hich reduces maintenance costs.
10. Support remote equipment control, improve emergency response capabilities, and reduce inspection labor costs.
Technical process
AO+MBBR process: The MBBR process is a new and efficient wastewater treatment method, which combines the advantages of both traditional fluidized bed and biological contact oxidation processes.
Influent and effluent quality indicators
| Project | PH | COD | BOD5 | SS | NH3-N | TP |
| Incoming water quality | 6-9 | <=350mg/L | <=180mg/L | <=200mg/L | <=30 | <=5mg/L |
| Effluent quality | 6-9 | <=50mg/L | <=10mg/L | <=10mg/L | <=5 | <=0.5mg/L |
Device parameters
| DT·Jin·1 | DT·Jin·2 | ||
| <Emission Standard of Pollutants for Urban Sewage TreatmentPlants>GB18918-2002Grade A standard | <Water Pollution Discharge Standard for Medical lnstitutions>GB18466-2005Emission Standards | ||
| throughput | size | throughput | size |
| (m3/d) | (mm) | (m3/d) | (mm) |
| 10 | 4800*1500*2000 | 10 | 4300*1500*2000 |
| 20 | 4200*2500*2500 | 20 | 3700*2500*2500 |
| 50 | 5200*3000*3000 | 50 | 4700*3000*3000 |
| 100 | 9500*3000*3000 | 100 | 8500*3000*3000 |
| 150 | A:10500*3000*3000 | 150 | A:9000*3000*3000 |
| B:3500*3000*3000 | B:3500*3000*3000 | ||
| 200 | A:10500*3000*3000 | 200 | A:9000*3000*3000 |
| B:6000*3000*3000 |
B:6000*3000*3000 |
||
Advantages
1) mbr integrated sewage treatment equipment has high pollutant removal efficiency and good effluent quality.
2) The mbr integrated sewage treatment equipment has high sludge concentration, large volume load and small occupation area.
3) mbr integrated sewage treatment equipment is conducive to the interception of slow-proliferating or high-efficient microorganisms, improve the nitrification effect of the system and the treatment ability of refractory organic matter.
4) The excess sludge production of mbr integrated sewage treatment equipment is low.
5) The integrated mbr sewage treatment equipment is easy to realize automatic control and easy to operate and manage.
6) SS and turbidity of discharged water after treatment are close to zero, which can be reused.

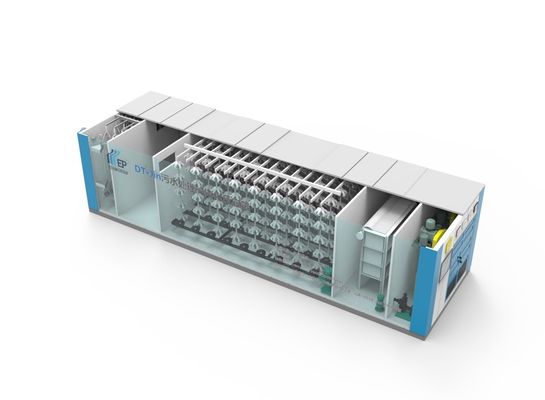

PRODUCT DETAILS
PRODUCT ADVANTAGES
THE TREATMENT EFFECT IS OBVIOUS
After sewage treatment,it can be used for greening,toilet and other reclaimed water reuse
Application
Membrane bioreactor (MBR) is a new and efficient wastewater treatment technology which combines membrane separation and biological treatment. The denitrification mechanism of industrial nitrogenous wastewater includes two basic processes: nitrification and denitrification. Nitrification refers to the process of converting ammonia nitrogen into nitrate nitrogen, which is mainly completed by two types of aerobic autotrophic bacteria, nitrifying bacteria and nitrifying bacteria.
MBR membrane technology first by activated sludge removal of biodegradable organic pollutants in water, and then USES the membrane component force intercept the activated sludge bioreactor and the vast majority of suspended solids, implementation after purification of water and activated sludge solid-liquid separation, thus strengthened the biochemical reaction, improve the effect of the sewage treatment and water quality.
The MBR process has a significant effect on COD treatment in the wastewater of nitrogen fertilizer industry, and its biochemical strain regimen and acclimation stage is short, showing a stable effect from the third day. In stable treatment stage and normal operation stage, the COD removal rate can maintain high, and the removal rate is more than 90%. The average COD for export should be controlled below 30mg/L.

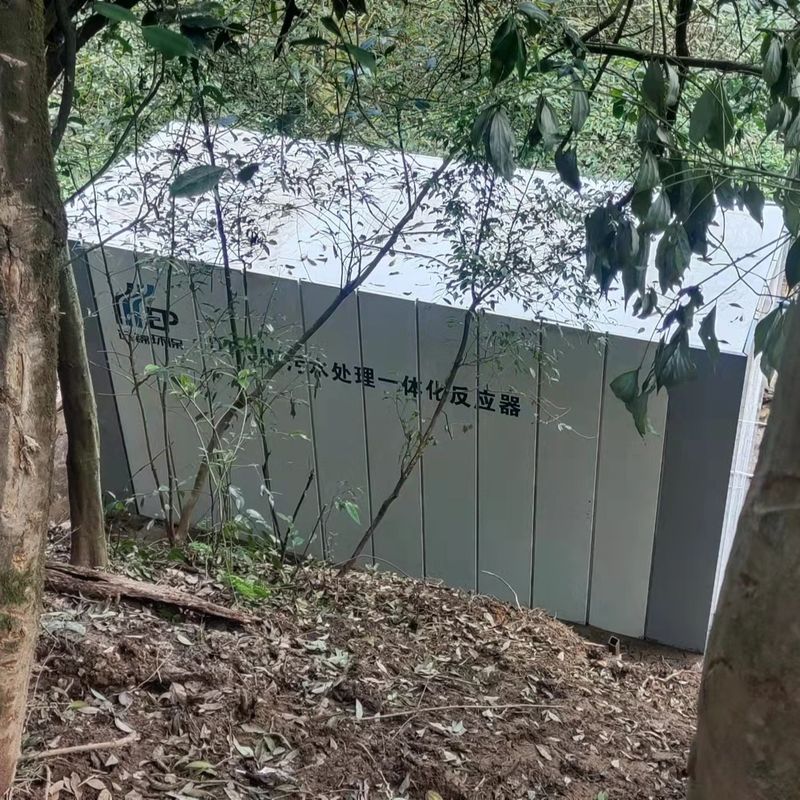

REAL SHOT DISPLAY
COMPANY REAL SHOW
Chengdu Yuanjin Environmental Protection Engineering Co., Ltd. was established in 2012 with a registered capital of 20 million. The production workshop covers an area of 1,400 square meters. There are more than 20 employees, including 2 senior engineers, 4 intermediate engineers, and 14 professional technicians; our company's technical team, all It is composed of a group of people who have worked in the field of water treatment for a long time. The company is a high-tech enterprise. It has obtained a number of certificates such as a patent certificate, nine software copyrights, a construction enterprise qualification certificate, and ISO9001 international quality management system certification. The environmental protection project will strive to build the most well-known Chengdu water treatment company. We have always adhered to the tenet of "quality first, customer first" and the management policy of "integrity, pragmatism, responsibility and efficiency", and advocated new ideas and new technologies. Tolerance for failure is the company's philosophy, which ensures that every employee of our company can pay for the company wholeheartedly, and that every one of our customers is satisfied with the services provided by the company.
