Hot Spring Water Circulation MBR Wastewater Treatment Equipment High Temperature Resistant

MBR Wastewater Treatment Equipment

High Temperature Resistant Hot Spring Water Circulation MBR Wastewater Treatment Equipment

Wastewater treatment equipment Description

MBR Wastewater Treatment Equipment is a new type of wastewater treatment equipment which combines membrane separation technology with traditional activated sludge process. It REPLACES THE SECONDARY sedimentation TANK IN THE traditional activated SLUDGE process (CAS) with a membrane module, which greatly improves the solid-liquid separation ability of the system, so that the effluent quality and volume load of the system are greatly improved, and the effluent can be reused as middle water. Due to the filtration of the membrane. The MICROORGANISMS were completely trapped in the bioreactor, which realized the high separation of hydraulic retention time and sludge age, and eliminated the sludge bulking problem in the traditional activated sludge process.

Working principle

MBR Wastewater Treatment Equipment s the core component of MBR-bulk wastewater treatment equipment. It is a new wastewater treatment technology combining membrane separation technology and biotechnology.

The sewage goes into the MBR system. Zone A is the facultative oxygen zone, where fillers are placed and fully contacted with activated sludge. Zone 0 is the aerobic zone, and the placer uses PVDF membrane to trap activated sludge and macromolecular organic matter and omit the secondary sedimentation tank. As a result, the concentration of activated sludge is greatly increased, and the hydraulic retention time (GYT) and sludge retention time (SRT) can be controlled separately, while the refractory substances are continuously reacted and degraded in the reactor. The treated water for further treatment can meet the standards for discharge or reuse. In addition, the air delivered to the MBR system is also a very important part of the treatment process. It can promote the circulation flow of the fluid in the reactor, improve the degradation efficiency of activated sludge, and make the hollow fiber membrane filaments friction between each other to clean the membrane components.

Influent and effluent quality indicators

Device parameters

Equipment characteristics

1. Using CSBR and SBRI technology with good strains and high concentration activated sludge, the biomass in the system is 3 times that of the traditional activated sludge method, the pollutant removal rate is high, the nitrogen removal effect is good, and the effluent can reach the grade A standard completely.

2. the use of zero sludge discharge process, the system only needs to discharge slag once a year.

3. easy installation, just put the lifting pump into the regulating pool, the circulation pump into the sedimentation pool, the outlet pipe to the drain, switch on the power, add activated sludge and bacteria can run, debugging within two weeks can reach the standard, biochemical reaction system maintenance free for life.

4. the use of automatic remote control mode, simple operation, without professional management, to achieve a true sense of unattended.

Application field

Including residential areas, towns and rural areas, scenic spots, highway service areas, airports, wharves, industrial and mining enterprises, other places where sewage is difficult to collect and has not yet built municipal sewage pipe network of the area of sewage. After treatment, the effluent meets the standard of domestic miscellaneous water.

PRODUCT DETAILS

PRODUCT ADVANTAGES

THE TREATMENT EFFECT IS OBVIOUS

After sewage treatment,it can be used for greening,toilet and other reclaimed water reuse

APPLICABLE TO ALL SCENARIOS

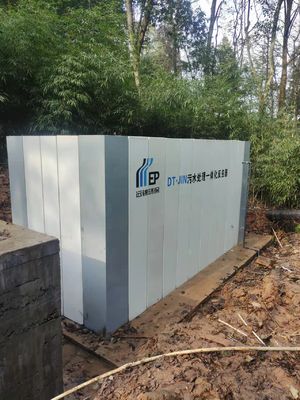

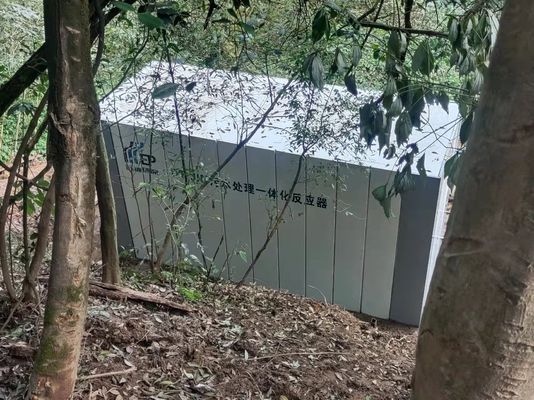

REAL SHOT DISPLAY

COMPANY REAL SHOW

Chengdu Yuanjin Environmental Protection Engineering Co., Ltd. was established in 2012 with a registered capital of 20 million. The production workshop covers an area of 1,400 square meters. There are more than 20 employees, including 2 senior engineers, 4 intermediate engineers, and 14 professional technicians; our company's technical team, all It is composed of a group of people who have worked in the field of water treatment for a long time. The company is a high-tech enterprise. It has obtained a number of certificates such as a patent certificate, nine software copyrights, a construction enterprise qualification certificate, and ISO9001 international quality management system certification. The environmental protection project will strive to build the most well-known Chengdu water treatment company. We have always adhered to the tenet of "quality first, customer first" and the management policy of "integrity, pragmatism, responsibility and efficiency", and advocated new ideas and new technologies. Tolerance for failure is the company's philosophy, which ensures that every employee of our company can pay for the company wholeheartedly, and that every one of our customers is satisfied with the services provided by the company.
