Product Details:
|
| Application: | SeaWater Treatment | Capacity: | Customized |
|---|---|---|---|
| Dimension: | Customized | Flow Rate: | Customized |
| Material: | Glass Fiber Reinforced Plastic | OEM/ODM: | Available |
| Power: | 220V/380V | Pressure: | 0.8-1.7MPa |
| Product Name: | RO Water Treatment Equipment | Recovery Rate: | 50-70% |
| Type: | Reverse Osmosis | Warranty: | 1 Year |
| High Light: | 5000L/D RO Water Treatment Equipment,ODM RO Water Treatment Equipment,1.7MPa Tap Water Purification Equipment |
||

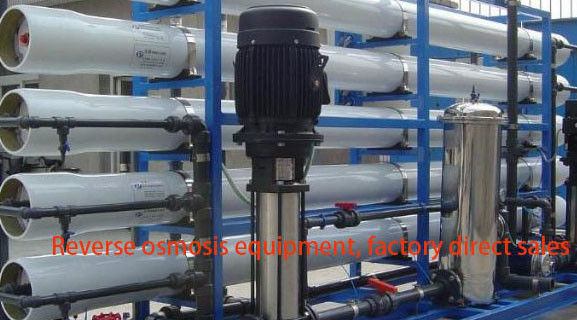

5000L/D reverse osmosis RO water treatment equipment Large industrial tap water purification treatment equipment
Product introduction
The reverse osmosis equipment produced by our company adopts the osmosis filtration process of reverse osmosis membrane, which is a modern pure water treatment technology. Reverse osmosis membrane with the help of the pressure-driven membrane separation technology that selects the function of the permeable (semi-permeable) membrane, when the pressure added to the system is greater than the osmotic pressure of the aqueous solution, water molecules continue to pass through the membrane, flow into the central tube through the flow channel, and then the impurities in the water, such as ions, organic matter, bacteria, viruses, etc. at one end of the water are trapped in the inlet side of the membrane. Then at the end of the concentrated water outflow, so as to achieve the purpose of separation and purification.
Product advantage
1.The system is designed according to the quality of raw water provided by users and the quality requirements of produced water in time. The system configuration and setting can fully meet the water conditions, with automatic, energy saving, simple operation as the principle, to ensure the long-term stable operation of the system. The whole unit operates according to one programmed principle: the purified water preparation system remains stable even when there is no water requirement.
2, The whole system has high and low pressure alarm, water shortage alarm, failure alarm, low compressed air alarm, electrical conductivity does not meet the requirements alarm functions. Three-level control system, storage function for water conductivity and USB printer interface, so as to implement fully automatic control and operation. Realize the frequency conversion control of the original pump conveying pump. It also comes with a paperless recorder for instant printing.
3,The equipment adopts PLC control, touch screen display equipment process flow, conductivity, PH value, liquid level, flow rate, and can achieve manual and automatic operation on the touch screen.
Features
1, high quality reverse osmosis membrane
2, Five level filtration
3, rust, corrosion resistance
4, long service life: 15-20 years
5, small and light, easy to use, easy to maintain
6, self-protection design, according to China Classification Society CCS quality standard production
7, applicable power supply: 220V/50HZ, 380V/50HZ
8, water standard: in line with the national drinking water standard "GB5749-2006"
Main composition
| No. | Name | No. | Name |
| 1 | Pressure alarm | 9 |
Production water button |
| 2 | Liquid alarm | 10 | Stop button |
|
3 |
Overpressure alarm |
11 |
Emergency stop button |
| 4 | Production water flow meter | 12 | Suction pump |
| 5 | HP outlet presure gauge | 13 | HP switch |
|
6 |
Adjusting valve |
14 |
High pressure pump |
| 7 |
HP pump inlet prssure gauge |
15 | Pre-filters |
| 8 | Flushing button |
| YJ-5000 | |||
| Rated flow rate | 5000L/H | Recovery rate | 50-70% |
| Voltage | 220V 50HZ | Power | 7.3KW |
| Inlet TDS |
<1000ppm |
Working temperature |
0-45℃ |
| Design pressure | 1.7MPA | Outlet TDS | <500ppm |
|
Inlet water source |
Groundwater, river water, reservoir water, tap water |
Working pressure |
0.8~1.7MPA |
|
Machine net size |
3.20*1.20*2.2(m) |
Machine net weight |
120KG |
Application field
1,Pure water for the food industry
2,Pure water for the cosmetics industry
3,Pure water for the pharmaceutical industry
4,Pure water for the medical device industry
5,Pure water for hospital disinfection supply center
6,Pure water for the electronics industry
7,Pure water for chemical industry
WORKSHOP
FAQ
1. Why choose us?
1) Yuanjin has 12 years of experience in wastewater and sludge treatment.
2) We introduce advanced technology and experience at home and abroad, and have been committed to the research and development of water treatment equipment for a long time.
3) We only use the best parts from the best suppliers.
4) Yuanjin's technical team is composed of a group of people with long-term working experience in the field of water treatment to provide customers with high-quality services.
2. What is the price of the product?
According to the amount of water treated, the price is different.
3. What is the effect of the treated water?
1) The treated pure water can be directly consumed and meets the World Health Organization (WHO) drinking water quality standards.
2) The sewage can be directly discharged after treatment, which is environmentally friendly and meets the requirements of international sewage treatment discharge standards.
