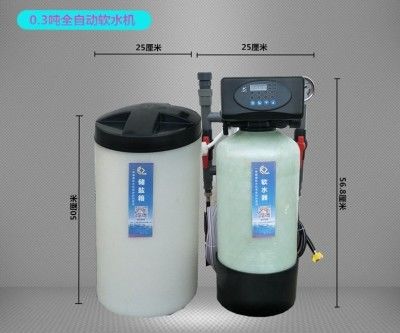

24H Continuous Intelligent Auto Magnetic Water Softener System FRP Water Softener

24H Continuous Intelligent Auto Magnetic Water Softener System FRP Water Softener
24H Continuous Intelligent Auto Magnetic Water Softener System FRP Water Softener

Large Image :  24H Continuous Intelligent Auto Magnetic Water Softener System FRP Water Softener

Product Details:
Place of Origin: Chengdu, Sichuan
Brand Name: Yuanjin
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiatable
Packaging Details: Wooden box
Delivery Time: 3-7 weeks
Payment Terms: T/T, L/C
Supply Ability: 10 Sets per month

24H Continuous Intelligent Auto Magnetic Water Softener System FRP Water Softener

Description
Certification: ISO 9001,CMA, CCE Model Number: FRP Softener
Product Name: Soft Water System/water Softener System Material: SS,PVC,PPR,FRP
Capacity: 500L-100m3/hr Working Pressure: 0.15-0.5 Mpa
Feed Water: Underground Water Electricity Power: 220V 50/60Hz
Application Places: Commercial, Household, Water Treatment Usage: Hard Water
Control For Regeneration: Time Or Flow Rate Water Source:: River, Borehole , Tap
Application: Remove Calcium And Magnesium Operation: Automatic Running
Function: Producing Fresh Water
High Light:

Intelligent FRP water softener

,

magnetic water softener system

,

OEM whole house magnetic water softener

Resin Water Softener



24 Hours Continuous Intelligent Automatic Water Pre Treatment Magnetic Water FRP Softener



Product Description



The working process of the water softener is generally composed of the following steps: reverse washing, salt absorption (regeneration), slow flushing (replacement), and quick washing of five processes.All processes of different softening water devices are very close, but there may be some additional processes due to the different or controlled needs of the actual process.



Any softening water device based on sodium ion exchange is developed on the basis of these five processes.Automatic softener running program:

A. operation (work)
Raw water in a certain pressure (0.2-0.6Mpa), flow rate, the body cavity by the controller, into the containers of ion exchange resin (resin cans), resin contained in Na + and the cation in the water (Ca2 +, magnesium 2 +, Fe2 +, etc) to exchange, which makes water of Ca2 +, magnesium 2 + ion content meet the established requirements, to achieve the softening of hard water.

B. Backwashing
After the resins are expired, the backwash is carried out from bottom to bottom before recycling.The purpose of reverse washing is to have two, one is through reverse washing, make the resin layer that runs medium pressure is loosened, favorable to the resin particle and the regeneration liquid to make full contact;The first is that the suspended solids and broken resins accumulated on the surface of the resin are discharged with anti-wash water, so that the flow resistance of the exchanger will not become larger and larger.

C. regenerated salt
The regenerated salt solution is used to restore the original exchange capacity under certain concentration and discharge.

D. replacement (slow cleaning)
In regeneration after the liquid into the, the switch has not involved in the regeneration of exchange in salt solution, use less than or equal to the renewable liquid flow rate of water washed clean (slow), in order to make full use of the regeneration of the salt solution and reduce is wash load.

E. Washing (quick cleaning)
The aim is to remove residual waste from the resin layer and usually clean it at normal flow rate until the water is qualified.

F. Regenerator box water injection
Regenerating the amount of salt needed to regenerate the reagent box












24H Continuous Intelligent Auto Magnetic Water Softener System FRP Water Softener 0

Cases And Workshops



24H Continuous Intelligent Auto Magnetic Water Softener System FRP Water Softener 1

COMPANY REAL SHOW

24H Continuous Intelligent Auto Magnetic Water Softener System FRP Water Softener 2

Chengdu Yuanjin Environmental Protection Engineering Co., Ltd. was established in 2012 with a registered capital of 20 million. The production workshop covers an area of 1,400 square meters. There are more than 20 employees, including 2 senior engineers, 4 intermediate engineers, and 14 professional technicians; our company's technical team, all It is composed of a group of people who have worked in the field of water treatment for a long time. The company is a high-tech enterprise. It has obtained a number of certificates such as a patent certificate, nine software copyrights, a construction enterprise qualification certificate, and ISO9001 international quality management system certification. The environmental protection project will strive to build the most well-known Chengdu water treatment company. We have always adhered to the tenet of "quality first, customer first" and the management policy of "integrity, pragmatism, responsibility and efficiency", and advocated new ideas and new technologies. Tolerance for failure is the company's philosophy, which ensures that every employee of our company can pay for the company wholeheartedly, and that every one of our customers is satisfied with the services provided by the company.
