Water Treatment Automatic Backwash Filters System Shallow Sand Media Filter

Water Treatment Automatic Backwash Filters System Shallow Sand Media Filter
Water Treatment Automatic Backwash Filters System Shallow Sand Media Filter

Large Image :  Water Treatment Automatic Backwash Filters System Shallow Sand Media Filter

Product Details:
Place of Origin: Chengdu, Sichuan
Brand Name: Yuanjin
Certification: ISO 9001, ISO 14001,CMA
Model Number: YJMF-25
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiatable
Packaging Details: Wooden box
Delivery Time: 3-7 weeks
Payment Terms: T/T, L/C
Supply Ability: 10 Sets per month
Contact Now

Water Treatment Automatic Backwash Filters System Shallow Sand Media Filter

Description
Product Name: Media Filtration System Filter Medium: Quartz Sand
Material: Carbon Steel , Stainless Steel Color: Green ,Blue
Capacity: 220V/380V Application: Water Purification
Usage: Pure Water Process Power: 4KW
Core Components: Pressure Vessel, PLC Type: Water Filter Parts
High Light:

Water Treatment automatic backwash filters

,

Shallow Sand auto backwash water filter

,

Shallow Sand automatic backwash filter system

Media Filtration System



Automatic Backwashing Water Treatment Shallow Sand Media Filter







Overview

The shallow medium filter uses natural sea sand as the filter medium. Under a certain pressure, the water with high turbidity is filtered through a certain thickness of granular or non-granular natural sea sand, effectively intercepting and removing suspended solids, Organic matter, colloidal particles, microorganisms, chlorine, smell and some heavy metal ions, etc., and finally achieve a high-efficiency filtration device that reduces water turbidity and purifies water quality.



Working Princple

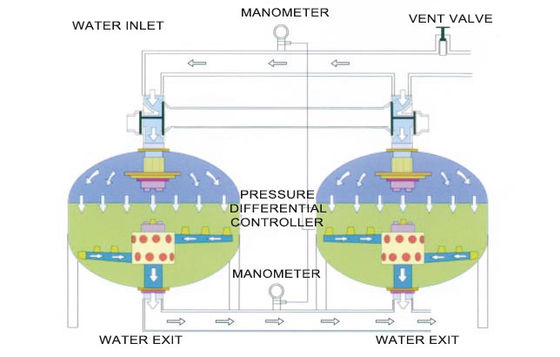

When the system is in the filtering state, the unfiltered water passes through the upper water distributor, cooperates with the spherical shell, and reaches the packing layer in the filter in a state of nearly advection. When water flows through the packing layer, impurities are trapped within the packing layer. The collector at the bottom of the filter collects the filtered water evenly and flows out. Advection filtration determines that the filter can still achieve good filtration effect under high flow rate.

As impurities continue to accumulate in the packing layer, the head loss (ie differential pressure) will continue to increase. When the pressure difference reaches a certain set limit or the filtration time reaches the set value, the system will automatically switch to the backwashing state to clean the packing layer and remove accumulated impurities. For the system, regular backwashing is required to remove Accumulated impurities are necessary.

When the system enters the backwash state, the on-off position of the three-way valve is changed through PLC control (the inlet is closed, the sewage port is opened), and the filtered water in other filter tanks flows into the filter tank to be backwashed. The packing layer of the filter unit backwashed by the system pressure is washed up under the impact of the water flow, and the impurities are discharged through the sewage outlet of the three-way valve.



PRODUCTS DETAILS



Water Treatment Automatic Backwash Filters System Shallow Sand Media Filter 0
WORKSHOP

Water Treatment Automatic Backwash Filters System Shallow Sand Media Filter 1
Chengdu Yuanjin Environmental Protection Engineering Co., Ltd. was established in 2012 with a registered capital of 20 million. The production workshop covers an area of 1,400 square meters. There are more than 20 employees, including 2 senior engineers, 4 intermediate engineers, and 14 professional technicians; our company's technical team, all It is composed of a group of people who have worked in the field of water treatment for a long time. The company is a high-tech enterprise. It has obtained a number of certificates such as a patent certificate, nine software copyrights, a construction enterprise qualification certificate, and ISO9001 international quality management system certification. The environmental protection project will strive to build the most well-known Chengdu water treatment company. We have always adhered to the tenet of "quality first, customer first" and the management policy of "integrity, pragmatism, responsibility and efficiency", and advocated new ideas and new technologies. Tolerance for failure is the company's philosophy, which ensures that every employee of our company can pay for the company wholeheartedly, and that every one of our customers is satisfied with the services provided by the company.
