UF Hollow Fiber Ultrafiltration Membrane Filtration RO Seawater Desalination Unit

UF Hollow Fiber Ultrafiltration Membrane Filtration RO Seawater Desalination Unit
UF Hollow Fiber Ultrafiltration Membrane Filtration RO Seawater Desalination Unit

Large Image :  UF Hollow Fiber Ultrafiltration Membrane Filtration RO Seawater Desalination Unit

Product Details:
Place of Origin: Chengdu, Sichuan
Brand Name: Yuanjin
Certification: ISO 9001, ISO 14001,CMA
Model Number: YJ-G75-1-C
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiatable
Packaging Details: Wooden box
Delivery Time: 3-7 weeks
Payment Terms: T/T, L/C
Supply Ability: 10 Sets per month

UF Hollow Fiber Ultrafiltration Membrane Filtration RO Seawater Desalination Unit

Description
Product Name: UF Water Treatment Plant Material: Ss304
Usage: Pure Water Process, Chemical Industry, Environmental Protection, Purify To Drink Voltage: 220V/380V
Warranty: 1 Year Control: PLC Inverter
Feature: Purified Water Production System Type: UF System
Function: UF Water Filtration Core Components: Pressure Vessel, Pump, UF Membrane
Application: Industry,drinking Pure Water Capacity: Can Be Customized
Size: Custom-made Fiber Material: Polyvinylidene Fluoride (PVDF)
Key Words: Ultrafiltration Membrane
High Light:

hollow fiber ultrafiltration membrane

,

ss304 hollow fiber membrane filtration

,

UF RO Seawater Desalination Unit

UF Water Treatment Plant



UF Ultrafiltration Hollow Fiber Membrane Manufacturer RO Seawater Desalination Unit On Sale



Products Description

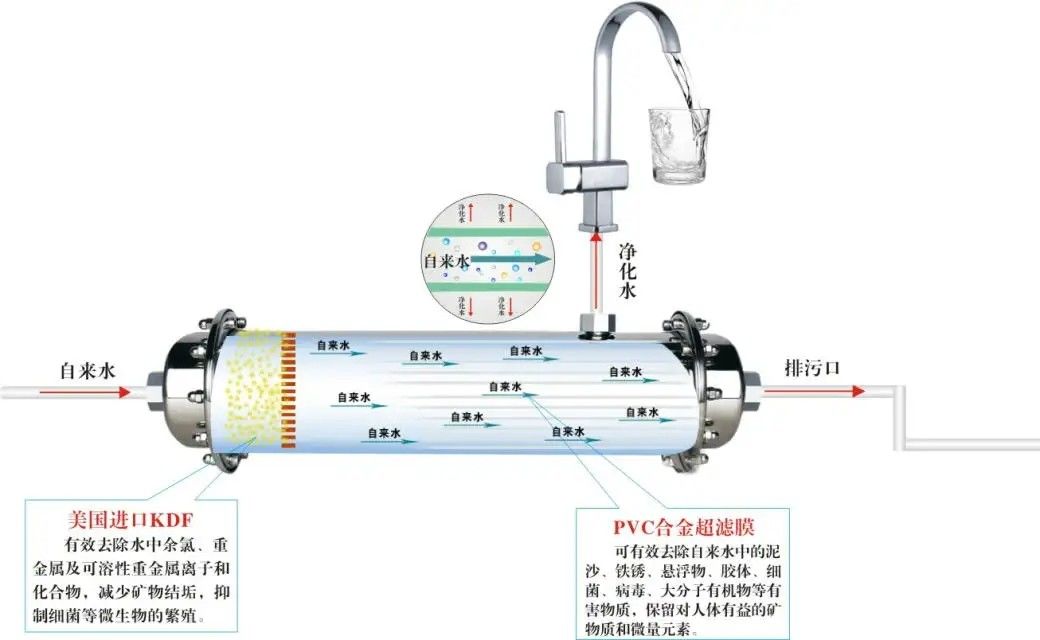

What is Ultrafiltration (UF)?

Ultrafiltration (UF) is a type of membrane filtration in which hydrostatic pressure forces a liquid against a semipermeable
membrane. Suspended solids and solutes of high molecular weight are retained, while water and low molecular weight solutes pass through the membrane. A semipermeable membrane is a thin layer of material capable of separating substances when a driving force is applied across the membrane.

UF Water System Processing:

First stage pretreatment.(Quartz Sand filter) optional
Second stage pretreatment (Active Carbon filter) optional
Third stage pretreatment (Resin softener) optional
Fourth stage pretreatment (Micron filter or bag filter)
Fifth stage (UF system)
Sixth stage (UV sterilizer) optional

Ultra filtration system Hollow fiber UF skid small drinking water processing machine, Working Process:

1. Raw water pump-- provide the pressure to quartz sand filter/active carbon filter.
2. Quartz sand filter--get rid of turbidity, suspended matter, organic matter, colloid, ect.
3. Active carbon filter--Remove the color, free chloride, organic matter, harmful matter, ect.
4. Softener resin --exchange "ions" of calcium and magnesium with the most common and easiest method.
5. Micron filter--prevent large particles, bacteria, viruses into RO membrane, accuracy is 5um,
6. UF system-- Suspended solids and solutes of high molecular weight are retained, while water and low molecular weight solutes pass through the membrane.
7.UV sterilizer-In the UV disinfection process, water is purified as it runs through a stainless steel chamber that contains a
special UV- producing lamp.






DETAILS



UF Hollow Fiber Ultrafiltration Membrane Filtration RO Seawater Desalination Unit 0



WORKSHOP



UF Hollow Fiber Ultrafiltration Membrane Filtration RO Seawater Desalination Unit 1

COMPANY REAL SHOW



20~120m Building Secondary Constant Pressure Water Supply Water Treatment Equipments 2



Since the establishment of Chengdu Yuanjin Environmental Protection Engineering Co., LTD., THE water treatment series products are centered in Chengdu and radiate to the southwest region, facing the whole country, and have been well received by many customers.



Through the cooperation with international famous companies in the field of water treatment, our company keeps pace with the international advanced level in water treatment technology; At the same time, the technical team of our company is composed of a group of people with long-term work experience in the field of water treatment. Some have worked in large enterprises for a long time, and some have worked in multinational companies for a long time. The field service engineers have certain work experience; Advanced science and technology, professional service team, coupled with our company's long-term management, to provide our customers with quality service. The company has long been committed to the research and development of water treatment equipment, and the introduction of domestic advanced technology and experience, the pursuit of practical and continuous innovation. Yuanjin Environmental protection Project will strive to create the most reputation of Chengdu water treatment company. We always take "quality first, customer first" as the purpose, to "integrity, pragmatic, responsible, efficient" business policy.



While maintaining the quality of our products, we strive to improve the quality and efficiency.
