PLC Inverter Industrial Filtration Plant UF Water Treatment Plant Membrane System Eco

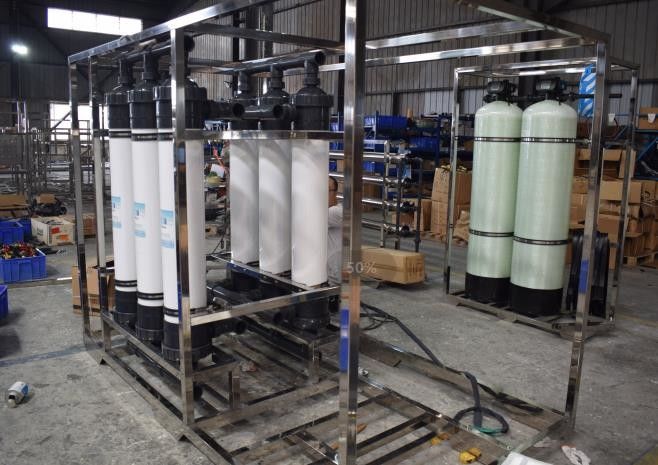

UF Water Treatment Plant

Membrane Ultrafiltration Unit Filter Plant For Industry

Working Principle

Tubular ultrafiltration membrane is the pressure under the action of a physical separation process, will concentrate on the membrane of the closed or lateral flow, such small molecules can penetrate membranes, from one side to another side, and macromolecular material would be trapped on the other side, so that it can remove the impurities in the water, to water purification purposes.

Ultrafiltration Process Parameters

The main parameters are membrane flux, membrane cleaning and membrane life. When the operating pressure is 0.11 ~ 0.6Mpa and the temperature is less than 60℃, the membrane flux of ultrafiltration membrane is 1-500L /m2h. The factors affecting membrane flux include: inlet flow rate, operating pressure, temperature, inlet concentration and raw water pretreatment.

The membrane must be cleaned regularly to prolong the life of the membrane. The life of the membrane in normal use is 12 ~ 18 months.

Compared with traditional separation methods, ultrafiltration technology has the following characteristics:

1. The filtration process is carried out at room temperature with mild conditions and no component destruction, so it is particularly suitable for the separation, classification, concentration and enrichment of heat-sensitive substances, such as drugs, enzymes and fruit juices.

2. The filtration process does not change phase, no heating, low energy consumption, no need to add chemical reagents, no pollution, is an energy saving and environmental protection separation technology.

3. Ultrafiltration technology has high separation efficiency, which is very effective for the recovery of trace components in dilute solution and the concentration of low concentration solution.

4. The ultrafiltration process only uses pressure as the power of membrane separation, so the separation device is simple, the process is short, the operation is simple, and it is easy to control and maintain.

5. Ultrafiltration method also has certain limitations, it can not directly get dry powder preparation. For protein solutions, generally only 10 to 50% concentration can be obtained.

DETAILS

WORKSHOP

COMPANY REAL SHOW

Since the establishment of Chengdu Yuanjin Environmental Protection Engineering Co., LTD., THE water treatment series products are centered in Chengdu and radiate to the southwest region, facing the whole country, and have been well received by many customers.

Through the cooperation with international famous companies in the field of water treatment, our company keeps pace with the international advanced level in water treatment technology; At the same time, the technical team of our company is composed of a group of people with long-term work experience in the field of water treatment. Some have worked in large enterprises for a long time, and some have worked in multinational companies for a long time. The field service engineers have certain work experience; Advanced science and technology, professional service team, coupled with our company's long-term management, to provide our customers with quality service. The company has long been committed to the research and development of water treatment equipment, and the introduction of domestic advanced technology and experience, the pursuit of practical and continuous innovation. Yuanjin Environmental protection Project will strive to create the most reputation of Chengdu water treatment company. We always take "quality first, customer first" as the purpose, to "integrity, pragmatic, responsible, efficient" business policy.

While maintaining the quality of our products, we strive to improve the quality and efficiency.
