Product Details:
|
| Features: | Small Footprint | Product Name: | Industrial Wastewater Treatment Equipment |
|---|---|---|---|
| Colour: | White、Blue | Material: | Carbon Steel |
| Technology: | A2O+Tubular Membrane | Voltage: | 220V/380V |
| Maximum Throughout: | 300m3/d | Application: | Industrial/Hospital/Farm/Food Washing |
| High Light: | Industrial Wastewater Treatment Equipment 300m3/d,AAO wastewater treatment machines,AAO biological treatment system |
||

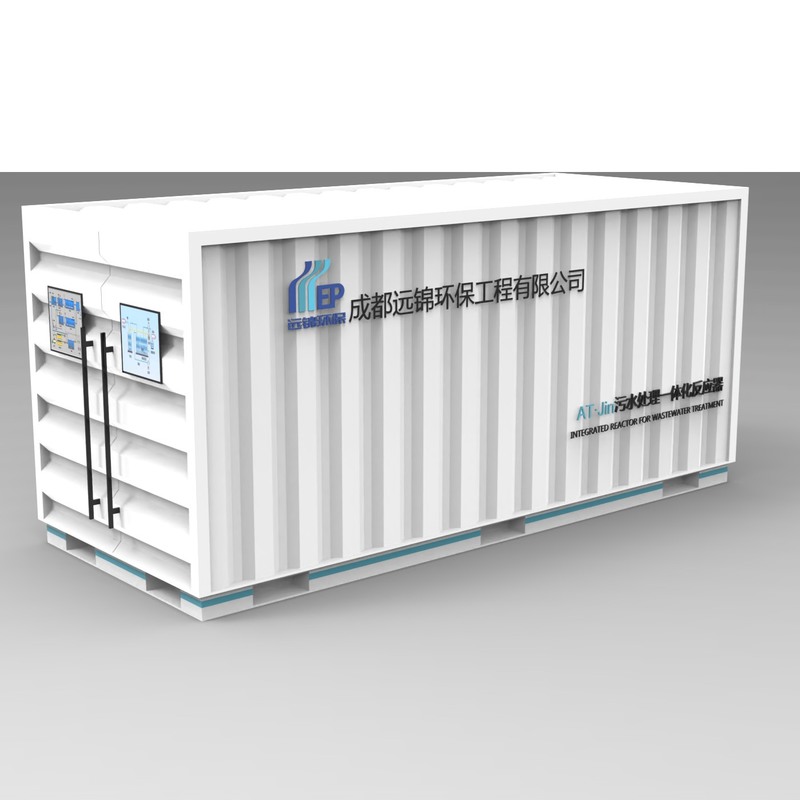

Industrial Wastewater Treatment Equipment
300m3/d AAO Biochemical Treatment Industrial Wastewater Treatment Equipment For Aquaculture Wastewater
Equipment Description
The Industrial Wastewater Treatment Equipment adopts membrane bioreactor technology, which is a new technology combining biological treatment technology and membrane separation technology. Stabilize the sewage. It can also maintain the high concentration of microorganisms in the biological pool, the residual sludge in the process is less, and the removal of ammonia nitrogen is extremely effective. The suspended solids and turbidity of the effluent are close to zero, and the bacteria and viruses of the effluent are largely removed, with low energy consumption and small footprint.
Working Principle
Industrial Wastewater Treatment Equipment series products adopt A2O+ tubular membrane technology. In the A2O process, nitrification, denitrification and biological phosphorus removal are completed based on activated sludge microorganisms. In the tubular membrane process, the feed liquid flows through the inner surface of the membrane tube under pressure, and the trapped material (suspended solid particles) is carried out of the membrane tube by the concentrated liquid, thereby preventing the particulate matter from accumulating into a cake.
Influent and effluent quality indicators
| project | PH | COD | BOD5 | SS | NH3-N | TP |
| Incoming water quality |
6-9 |
<=350mg/L | <=180mg/L | <=200mg/L | <=30 | <=5mg/L |
| Effluent quality | 6-9 | <=50mg/L | <=10mg/L | <=10mg/L | <=5 | <=0.5mg/L |
Device parameters
| AT·Jin·1 | AT·Jin·2 | ||
| <Emission Standard of Pollutants for Urban Sewage TreatmentPlants>GB18918-2002Grade A standard | <Water Pollution Discharge Standard for Medical lnstitutions>GB18466-2005Emission Standards | ||
| throughput | size | throughput | size |
| (m3/d) | (mm) | (m3/d) | (mm) |
| 10 | 4500*1500*2000 | 10 | 4000*1500*2000 |
| 20 | 4000*2500*2500 | 20 | 3500*2500*2500 |
| 50 | 5000*3000*3000 | 50 | 4500*3000*3000 |
| 100 | 9300*3000*3000 | 100 | 8300*3000*3000 |
| 150 | A:10500*3000*3000 | 150 | A:9000*3000*3000 |
| B:3000*3000*3000 | B:3000*3000*3000 | ||
| 200 | A:10500*3000*3000 | 200 | A:9000*3000*3000 |
| B:5500*3000*3000 | B:5500*3000*3000 | ||
Application
The Industrial Wastewater Treatment Equipment is suitable for residential areas, office buildings, shopping malls, hotels, restaurants, institutions, schools, troops, factories and other domestic sewage and similar industrial organic wastewater, such as textile, beer, paper, leather, food, chemical and other industries of organic sewage treatment.
Equipment Advantages
1. The technology of the equipment is mature,the service life is long;
2. The maintenance and management are convenient;
3. The equipment can be buried;
4. It occupies a small area and has no impact on the surrounding environment.
Process Characteristics
1. The equipment has patented biological filting;
2. Strong ability to treat sewage;
3. No aeration, environmental protection and energy saving;
4. Easy to store, high pressure resistance, aging resistance;
5. No membrane tank, no sludge thickening tank, unit type vertical arrangement, saving land.
Product Details
Water Purification Comparison
Mature Technology Scientific Structure
Application
Real Shot Display
Company Real Show
Chengdu Yuanjin Environmental Protection Engineering Co., Ltd. was established in 2012 with a registered capital of 20 million. The production workshop covers an area of 1,400 square meters. There are more than 20 employees, including 2 senior engineers, 4 intermediate engineers, and 14 professional technicians; our company's technical team, all It is composed of a group of people who have worked in the field of water treatment for a long time. The company is a high-tech enterprise. It has obtained a number of certificates such as a patent certificate, nine software copyrights, a construction enterprise qualification certificate, and ISO9001 international quality management system certification. The environmental protection project will strive to build the most well-known Chengdu water treatment company. We have always adhered to the tenet of "quality first, customer first" and the management policy of "integrity, pragmatism, responsibility and efficiency", and advocated new ideas and new technologies. Tolerance for failure is the company's philosophy, which ensures that every employee of our company can pay for the company wholeheartedly, and that every one of our customers is satisfied with the services provided by the company.
FAQ
1. Why choose us?
1) Yuanjin has 12 years of experience in wastewater and sludge treatment.
2) We introduce advanced technology and experience at home and abroad, and have been committed to the research and development of water treatment equipment for a long time.
3) We only use the best parts from the best suppliers.
4) Yuanjin's technical team is composed of a group of people with long-term working experience in the field of water treatment to provide customers with high-quality services.
2. What is the price of the product?
According to the amount of water treated, the price is different, and the unit price range is 145~866 $/m3·d.
3. What is the effect of the treated water?
1) The treated pure water can be directly consumed and meets the World Health Organization (WHO) drinking water quality standards.
2) The sewage can be directly discharged after treatment, which is environmentally friendly and meets the requirements of international sewage treatment discharge standards.
