SUS304 Landfill Leachate Treatment Process System Carbon Steel

Industrial Wastewater Treatment Equipment

SUS304 Landfill Leachate Industrial Wastewater Treatment Equipment​

Equipment Description


Industrial Wastewater Treatment Equipment is to treat the Landfill Leachate. Landfill leachate refers to a kind of highly concentrated organic wastewater formed by the water contained in the garbage itself in the waste disposal site, the rain and snow water and other water entering the waste treatment plant, deducting the saturated water of the garbage and the overlying soil layer, and experiencing the waste and overlying soil layer. There is also water seepage from accumulated waste destined for incineration.

In the treatment methods of leachate, such as the combined treatment of leachate and municipal sewage is easy to destroy the activity of microorganisms, in addition, the landfill is usually far away from the town, so the leachate often has to be treated separately. The mature and applicable technology is: biochemical method + membrane separation method, which not only has low production cost, but also has good effluent quality, which conforms to the first level discharge standard newly issued by the state.

Equipment Features

Membrane bioreactor (MBR) is a combination of membrane processes like microfiltration or ultrafiltration with a biological wastewater treatment process, the activated sludge process. It is now widely used for municipal and industrial wastewater treatment.[1] In general, there are two different MBR configurations: (1) submerged membrane bioreactor (SMBR) and (2) side stream membrane bioreactor.[2] In the first configuration, the membrane is located inside the biological reactor, submerged in the wastewater. In the latter configuration, the membrane is located outside the reactor, as an additional step after biological treatment.

MBR technology uses membrane filtration to replace the secondary sedimentation tank in the traditional activated sludge method, which can increase the sludge concentration in the biochemical reactor from 3 ~ 5g/L to 20 ~ 30g/L, and the maximum can reach 40g/L, so as to improve the reaction efficiency, and the effluent is sterile and suspended. And there is no need to consider the sludge settlement and bulking too much. The process flow is: leachate, pretreatment, regulating tank, MBR tank (tubular ultrafiltration membrane), RO and effluent. The main characteristics of MBR are as follows: the main pollutants COD, BOD and ammonia nitrogen are effectively degraded without secondary pollution; 100% biological bacteria isolation; The effluent is free of bacteria and solids; The project covers a small area; Small amount of residual sludge; No deodorizing device; Lower operating costs. Landfill leachate treated by MBR can generally meet the indirect discharge requirements. If the effluent needs to meet the direct discharge standards, RO can be used for further treatment according to different situations.

Product Details



Water Purification Comparison




Mature Technology Scientific Structure



Application

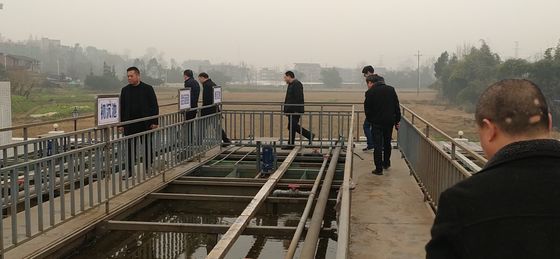

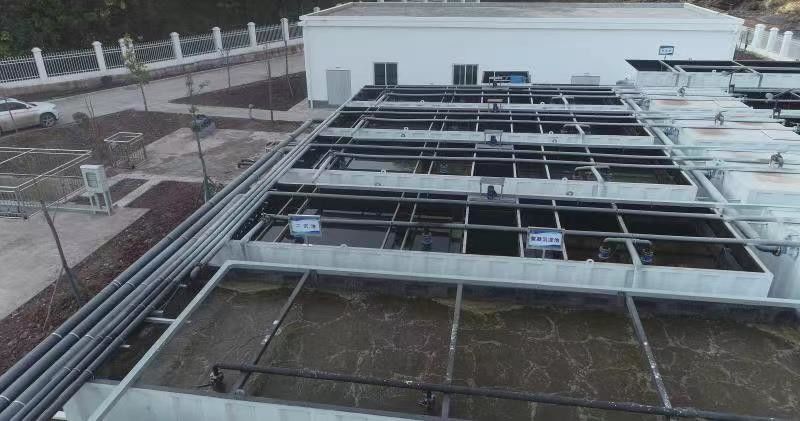

Real  Shot  Display



Company Real Show



Chengdu Yuanjin Environmental Protection Engineering Co., Ltd. was established in 2012 with a registered capital of 20 million. The production workshop covers an area of 1,400 square meters. There are more than 20 employees, including 2 senior engineers, 4 intermediate engineers, and 14 professional technicians; our company's technical team, all It is composed of a group of people who have worked in the field of water treatment for a long time. The company is a high-tech enterprise. It has obtained a number of certificates such as a patent certificate, nine software copyrights, a construction enterprise qualification certificate, and ISO9001 international quality management system certification. The environmental protection project will strive to build the most well-known Chengdu water treatment company. We have always adhered to the tenet of "quality first, customer first" and the management policy of "integrity, pragmatism, responsibility and efficiency", and advocated new ideas and new technologies. Tolerance for failure is the company's philosophy, which ensures that every employee of our company can pay for the company wholeheartedly, and that every one of our customers is satisfied with the services provided by the company.

FAQ

1. Why choose us?
1) Yuanjin has 12 years of experience in wastewater and sludge treatment.
2) We introduce advanced technology and experience at home and abroad, and have been committed to the research and development of water treatment equipment for a long time.
3) We only use the best parts from the best suppliers.
​4) Yuanjin's technical team is composed of a group of people with long-term working experience in the field of water treatment to provide customers with high-quality services.

2. What is the price of the product?
According to the amount of water treated, the price is different, and the unit price range is 145~866 $/m3·d.
3. What is the effect of the treated water?
1) The treated pure water can be directly consumed and meets the World Health Organization (WHO) drinking water quality standards.
2) The sewage can be directly discharged after treatment, which is environmentally friendly and meets the requirements of international sewage treatment discharge standards.
