Ultrapure Water Treatment Equipments EDI Water Plant 0.25 To 100 Tons/Hour

Water Treatment Equipments

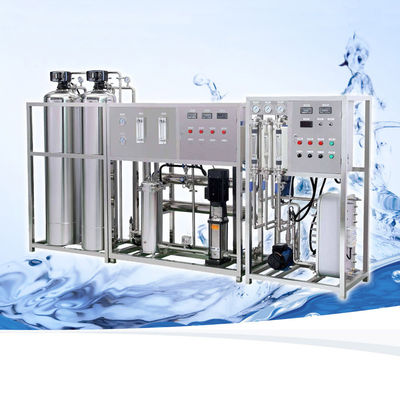

0.25 Tons/Hour Water EDI Ultrapure Water Treatment Equipments 190KG

What is EDI ultra pure water system?

Electro-deionization (EDI) is an electrically-driven water treatment technology that uses electricity, ion exchange and resin to remove ionized species from water. The combination of ion-exchange resins and ion-exchange membranes, which are used to move ionic impurities into a waste or concentrate water stream leaving purified product water.

How does EDI module work?

EDI Modules are usually used after two pass ro systems,two pass ro systems will remove 99% impurities from the water , Water enters the EDI module, where an applied current forces ions to move through the resins and across the membranes. These ions are collected into concentrate streams which can then be put to drain or be recycled. The deionized product water can then be used directly or undergo further treatment for enhanced water purity.

Applications of ultra pure water system

1. Chemical production
2. Biotechnology
3. Electronics
4. Cosmetic
5. Laboratories
6. Pharmaceutical industry
7. Boiler Feed Water
8. Purified water for electronic industry
9. Water for semiconductor and electronic industries

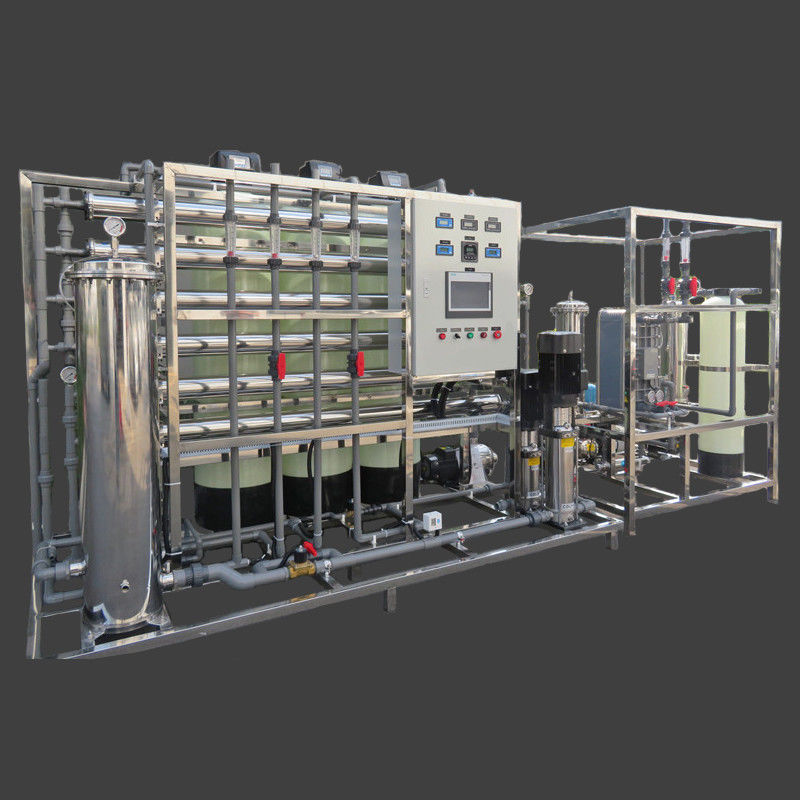

PLANT DESCRIPTION

RO+EDI watertreatment equipment, the use of pretreatment, reverse osmosis technology, ultra-purification treatment and post-stage treatment methods, the conductive medium in the water is almost completely removed, and the water does not dissociate the colloid substances, gases and organic matter are removed to a very low degree of water treatment equipment.

EDI (Elcctrodeionization) is a pure water manufacturing technique that combines ion exchange technique, ion exchange membrane technique and ion electromigration technique. It cleverly combines electrodialysis and ion exchange technology, using high voltage electrodes at both ends to make charged ions move in water, and with ion exchange resin and selective resin film to accelerate ion movement removal, so as to achieve the purpose of water purification. During EDI desalting, ions are removed through ion-exchange membranes under the action of electric field. At the same time, water molecules generate hydrogen ions and hydroxide ions under the electric field, and these ions continuously regenerate the ion exchange resin to keep the ion exchange resin in the best condition. The equipment has the advantages of compact structure, small area, high unit water production, less energy consumption, thorough removal of impurities, wide range of use, high degree of automation, easy to use and operation, no pollution and so on.

Technical Parameters

Model: Professional customization

Water yield: 0.25 tons/hour to 100 tons/hour

Water quality: municipal tap water or well water

Effluent quality: meet customer requirements of pure water quality

Conductivity range: 0.055µS/cm to 10µS/cm

Resistivity range: 1Ω·m~18.2Ω·m (20°C at room temperature)

EDI inlet water requirements

Reverse osmosis RO water production, conductivity 1-20μs/cm, the maximum allowable conductivity ≤30μs/cm (NaCl).

PH: 7.5-9

Temperature: 15 ℃, 35 ℃

Inlet water pressure (DIN) : 0.15-0.4 MPa

Inlet pressure of concentrated water (C) 0 103 mp IN: 0.10-0.3 MPa

Water pressure (DOUT) : 0.05-0.25mpa

Concentrated water outlet pressure (COUT) : 0.02 -- 0.2MPa

Inlet water hardness: < 1.0ppm(CaCO) (recommended below 0.5ppm)

Influent organic matter: TOC < 0.5ppm

Influent silicon: SiO2 < 0.5ppm

Inlet total CO2: < 3ppm

Inlet particle size: < 1μm

Pure Water Requirements For Various Industries

Scope Of Application

◆ Cosmetics Industry

Pure water for skin care products, shampoo, hair dye, toothpaste, and hand sanitizer

◆ Food, Beverage, Purified Water Industry

The production of water for food and beverage production as well as pure water

◆ Electronics Industry

Aluminum foil cleaning; Vacuum tube spraying liquid dispensing; Clear tube glass shell cleaning, precipitation, wetting, film washing, tube neck cleaning; Liquid crystal screen surface cleaning and preparation: transistor and integrated circuit silicon wafer cleaning water, preparation water.

◆ Battery Industry

Pure water for battery production, pure water for lithium battery production, and pure water for solar cell production

Pure water for concrete admixture preparation

High purity water for glass coating, glass products cleaning water, lamp cleaning water

◆ Textile Printing And Dyeing Industry

Pure water for printing and dyeing auxiliary preparation, pure water for wipes, and pure water for facial masks

◆ Pure Water For Ultrasonic Cleaning

◆ Coating Industry

coating preparation with pure water, electroplating preparation cleaning water, electrophoresis paint preparation cleaning water

DETAILS

FAQ

1. Why choose us?
1) Yuanjin has 12 years of experience in wastewater and sludge treatment.
2) We introduce advanced technology and experience at home and abroad, and have been committed to the research and development of water treatment equipment for a long time.
3) We only use the best parts from the best suppliers.
​4) Yuanjin's technical team is composed of a group of people with long-term working experience in the field of water treatment to provide customers with high-quality services.

2. What is the price of the product?
According to the amount of water treated, the price is different, and the unit price range is 145~866 $/m3·d.
3. What is the effect of the treated water?
1) The treated pure water can be directly consumed and meets the World Health Organization (WHO) drinking water quality standards.
2) The sewage can be directly discharged after treatment, which is environmentally friendly and meets the requirements of international sewage treatment discharge standards.
