ISO14001 2m3/ H Home Water Treatment Plants For Drinking Water

Water Treatment Equipments

2m3/h Automatic Water Treatment Equipments To Softening High Hardness Water For Drink

Product Introduction

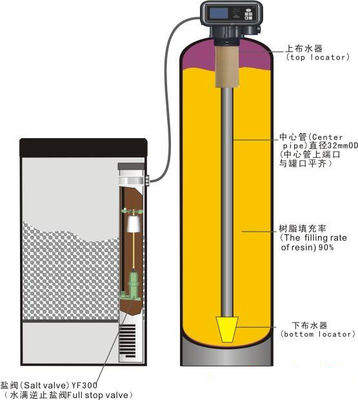

Water Treatment Equipments refers to equipment that reduces water hardness, mainly removing calcium and magnesium ions in the water. In the case of deep well water or water source with great hardness, its function is to remove calcium and magnesium ions in the water and reduce calcium and magnesium ions in the water, including three parts: ion exchange part, salt regeneration part and control part. Ion exchange technology is the working principle of softening system, its main body is ion exchange resin, due to the hardness of water mainly formed by calcium, magnesium and expressed, so generally used cation exchange resin, the water Ca2+, Mg2+ (the main component of the formation of scale) replacement out.

Equipment Features

1. high degree of automation, soft water processor can be timed, fixed flow automatic regeneration.

2. reliable performance, continuous operation, stable water quality.

3. Exchange tank made of glass steel, control body made of lead-free brass or PPO, salt box made of PE.

4. low operating cost: water consumption <2% of water production; Regenerating 1 liter of resin requires approximately 160-240 grams of salt; The power consumption is 3-40W, only 1% of the ordinary water softening equipment.

5. flexible selection, according to the need to choose double tank, multi tank system: time, flow control mode. At the same time regeneration, alternate regeneration and other operation mode.

6. the whole device design is reasonable, compact configuration, light weight, small footprint.

The Working Process

Work (sometimes called water production, the same below), backwashing, salt absorption (regeneration), slow flushing (displacement), fast flushing five processes.

The Regeneration Cycle

The Water yield at Water softening equipment that was completely regenerated until the next failure was related to the working exchange capacity of the resin, the resin filling capacity, the hardness of the raw water, and the working condition of the softening plant.

The general estimation method is as follows:

Periodic water yield (m3) = effective resin filling capacity (L) × resin working exchange capacity (mol/L) ÷ full hardness (mg/L CaCO3) ×50

Regeneration cycle = periodic water yield ÷ rated water yield resin working exchange capacity (mol/L)

Application Field

Fully automatic water softener can be widely used in steam boiler, hot water boiler, heat exchanger, evaporative condenser, air conditioning, direct gas turbine and other systems of water softening. Can also be used for hotels, restaurants, office buildings, apartments and other living water treatment and food, beverage, wine, laundry, printing and dyeing, chemical, pharmaceutical and other industries of soft water treatment.

Cases And Workshops

COMPANY REAL SHOW

Since the establishment of Chengdu Yuanjin Environmental Protection Engineering Co., LTD., THE water treatment series products are centered in Chengdu and radiate to the southwest region, facing the whole country, and have been well received by many customers.

Through the cooperation with international famous companies in the field of water treatment, our company keeps pace with the international advanced level in water treatment technology; At the same time, the technical team of our company is composed of a group of people with long-term work experience in the field of water treatment. Some have worked in large enterprises for a long time, and some have worked in multinational companies for a long time. The field service engineers have certain work experience; Advanced science and technology, professional service team, coupled with our company's long-term management, to provide our customers with quality service. The company has long been committed to the research and development of water treatment equipment, and the introduction of domestic advanced technology and experience, the pursuit of practical and continuous innovation. Yuanjin Environmental protection Project will strive to create the most reputation of Chengdu water treatment company. We always take "quality first, customer first" as the purpose, to "integrity, pragmatic, responsible, efficient" business policy.

While maintaining the quality of our products, we strive to improve the quality and efficiency.

Service Scope

1. Medical purified water, mineral water, highly pure water, purified water design, equipment supply, installation, commissioning, etc.

2. Electroplating, hospital, pharmaceutical, food, municipal, coal and other wastewater treatment design, equipment supply, undertake; Design and undertake water supply projects such as tap water station and groundwater treatment

3. Industrial circulating water treatment equipment

The company has the certificate issued by the Ministry of Construction; Professional contracting qualification of environmental protection engineering for construction enterprises (level 3); Took the lead in the industry through the ISO9001 international quality management system certification.
