White Carbon Steel Biological Wastewater Treatment Plant MBR System

White Carbon Steel Biochemical Sewage Treatment Equipment For Municipal Wastewater


300m3/d Biochemical Sewage Treatment Equipment Is Used For Municipal Sewage

MBR - membrane bioreactor (MBR) is the core component of bulk wastewater treatment equipment.When sewage enters the MBR system, zone A is the aerobic zone, and the filler is placed and fully contacts with the activated sludge. Zone 0 is the aerobic zone, and the filler is placed, aeration head is installed, and membrane assembly is placed in the membrane tank.Because of this, the concentration of activated sludge is greatly increased, hydraulic retention time (HRT) and sludge retention time (SRT) can be controlled respectively, and the refractory substances are continuously reacted and degraded in the reactor. After further treatment, the treated water can be discharged to the standard or reused.In addition, the air delivered to the MBR system is also a very important part of the process. It can promote the circulation of the fluid in the reactor, improve the degradation efficiency of activated sludge, and make the hollow fiber membrane fibers rub against each other to clean the membrane components.

Equipment Description

Water Treatment Equipments  have a series of products using the "A2O + tubular membrane" process. The external tubular membrane replaces the traditional MBR membrane pool and is placed between the equipment. The sewage is filtered through the tubular membrane.and the effluent is better than the "Urban Sewage Treatment Plant Pollutant Discharge Standard" GB18918-2002 Class A standard discharge standard.

Working Principle


The Water Treatment Equipments adopts AAO process, and the equipment is divided into anaerobic zone, anoxic zone and aerobic zone.

1. In the anaerobic zone, the original sewage enters simultaneously with the phosphorus-containing reflux sludge discharged from the sedimentation tank. The main function of the reaction zone is to release phosphorus and ammonify some organic matter at the same time;

2. hypoxia reaction zone, the primary function is denitrification, nitrate nitrogen is sent by the aerobic reaction zone through the internal circulation, the circulation of mixed liquid volume is large, generally 2Q (Q is the original sewage flow);

3. Aerobic reaction zone -- aeration tank. This reaction unit is multifunctional, where BOD removal, nitrification and phosphorus absorption are carried out. From here the mixture flows back to the anoxic response zone at a flow rate of 2Q.


Influent and effluent quality indicators



Device parameters



Application
Applicable to the residential area, villages, towns and villages, office buildings, shopping malls, hotels, restaurants, nursing homes, organs, schools, units, hospitals, highways, railways, factories, mines, scenic spots such as sewage and similar slaughter, aquatic products processing, food and other small and medium size industrial organic wastewater treatment and reuse.

Equipment Advantages
1. The technology of the equipment is mature,the service life is long;
2. The maintenance and management are convenient;
3. The equipment can be buried;
4. It occupies a small area and has no impact on the surrounding environment.

Process Characteristics
1. The equipment has patented biological filting;
2. Strong ability to treat sewage;
3. No aeration, environmental protection and energy saving;
4. Easy to store, high pressure resistance, aging resistance;
5. No membrane tank, no sludge thickening tank, unit type vertical arrangement, saving land.

Product Details



Water Purification Comparison




Mature Technology Scientific Structure



Applicable To All Scenarios

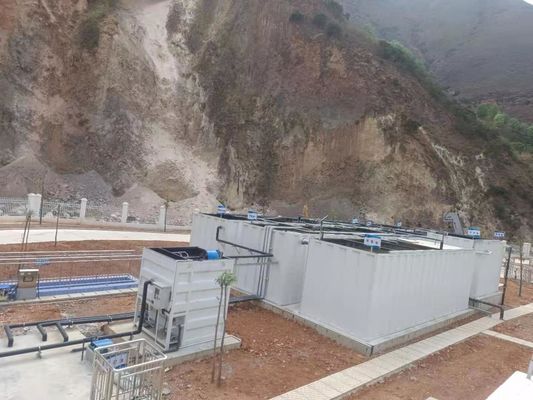

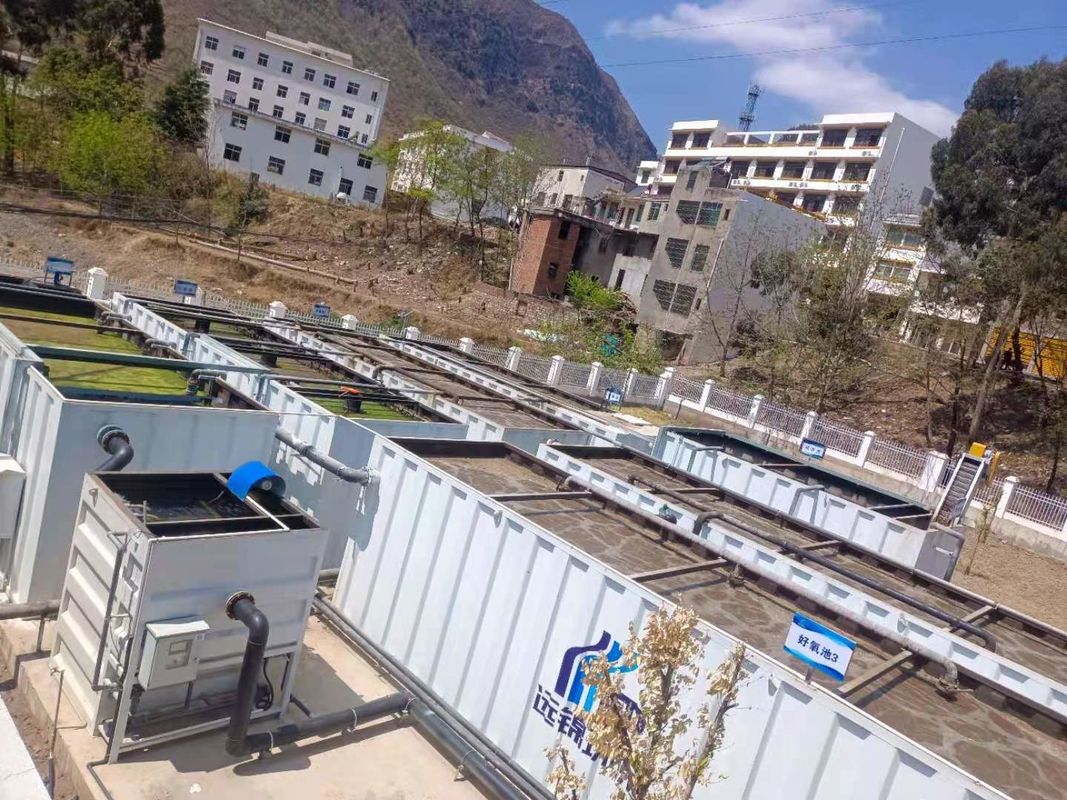

Real  Shot  Display


Company Real Show



Chengdu Yuanjin Environmental Protection Engineering Co., Ltd. was established in 2012 with a registered capital of 20 million. The production workshop covers an area of 1,400 square meters. There are more than 20 employees, including 2 senior engineers, 4 intermediate engineers, and 14 professional technicians; our company's technical team, all It is composed of a group of people who have worked in the field of water treatment for a long time. The company is a high-tech enterprise. It has obtained a number of certificates such as a patent certificate, nine software copyrights, a construction enterprise qualification certificate, and ISO9001 international quality management system certification. The environmental protection project will strive to build the most well-known Chengdu water treatment company. We have always adhered to the tenet of "quality first, customer first" and the management policy of "integrity, pragmatism, responsibility and efficiency", and advocated new ideas and new technologies. Tolerance for failure is the company's philosophy, which ensures that every employee of our company can pay for the company wholeheartedly, and that every one of our customers is satisfied with the services provided by the company.

FAQ

1. Why choose us?
1) Yuanjin has 12 years of experience in wastewater and sludge treatment.
2) We introduce advanced technology and experience at home and abroad, and have been committed to the research and development of water treatment equipment for a long time.
3) We only use the best parts from the best suppliers.
​4) Yuanjin's technical team is composed of a group of people with long-term working experience in the field of water treatment to provide customers with high-quality services.

2. What is the price of the product?
According to the amount of water treated, the price is different, and the unit price range is 145~866 $/m3·d.
3. What is the effect of the treated water?
1) The treated pure water can be directly consumed and meets the World Health Organization (WHO) drinking water quality standards.
2) The sewage can be directly discharged after treatment, which is environmentally friendly and meets the requirements of international sewage treatment discharge standards.
