Product Details:
|
| Product Name: | Water Treatment Equipments | Material: | Carbon Steel |
|---|---|---|---|
| Colour: | White,Blue | Technology: | A2O |
| Voltage: | 220V/380V | Capacity: | 10m3/H |
| Type: | On Ground | Size: | 12000*2800*2800(mm) |
| High Light: | 200m3/d integrated wastewater treatment equipment,200m3/d integrated waste water treatment,A2O integrated wastewater treatment equipment |
||
Water Treatment Equipments
200m3/d Efficient Integrated Water Treatment Equipments For School Sewage
Water Treatment Equipments Description
Integrated Sewage Treatment Equipment series adops "A2O+secondary sedimentation tank +chemical dephosphorization",A series of product based on the traditional process,with stable effluent Reached the"Pollutant Discharge Standard of Urban Sewage Treatment Plant"GB18918-2002-level A emission standard.
Working Principle
Integrated sewage treatment equipment adopts biofilm method: anoxic-aerobic (A/0) treatment process. Anoxic + aerobic biological contact oxidation is a mature biological treatment process, which has the advantages of high volume load, rapid biodegradation, small footprint, infrastructure investment and low operating cost. It can replace the conventional activated sludge method used in the original municipal sewage treatment, especially suitable for the treatment of medium and high concentration industrial wastewater, has the advantages of less investment, small occupation area and high treatment efficiency. The process is mature and reliable by combining biological contact oxidation and precipitation. Due to the action of dissolved oxygen in some sludge, the sludge deposited in the equipment is further oxidized and decomposed, and some sludge is extracted into the sand tank. The system sludge only needs to be pumped periodically into the sand sink. In the system, the main control equipment such as fan, submersible pump work procedures into the PLC machine, to achieve automatic work, in order to reduce the operation workload, and can reduce unnecessary artificial damage.
Influent and effluent quality indicators
| Project | PH | COD | BOD5 | SS | NH3-N | TP |
| Incoming water quality | 6-9 | <=350mg/L | <=180mg/L | <=200mg/L | <=30 | <=5mg/L |
| Effluent quality | 6-9 | <=50mg/L | <=10mg/L | <=10mg/L | <=5 | <=0.5mg/L |
Device parameters
| PT·Jin·1 | PT·Jin·2 | ||
| <Emission Standard of Pollutants for Urban Sewage TreatmentPlants>GB18918-2002Grade A standard | <Water Pollution Discharge Standard for Medical lnstitutions>GB18466-2005Emission Standards | ||
| throughput | size | throughput | size |
| (m3/d) | (mm) | (m3/d) | (mm) |
| 10 | 5200*1500*2000 | 10 | 5200*1500*2000 |
| 20 | 4700*2500*2500 | 20 | 4700*2500*2500 |
| 50 | 5800*3000*3000 | 50 | 5800*3000*3000 |
| 100 | A:7500*3000*3000 B:3500*3000*3000 |
100 |
A:6500*3000*3000 B:3500*3000*3000 |
| 150 | A:10500*3000*3000 B:5000*3000*3000 |
150 | A:6500*3000*3000 B:3500*3000*3000 |
| 200 | A:10000*3000*3000 B:8000*3000*3000 |
200 | A:8500*3000*3000 B:6000*3000*3000 |
Application
Residential/village/market town/station/airport/harbour terminal/ship factory/tourist spot/earth warehouse/scenic area similar to other waste water
Advantages
1. Mutual balance between sludge age and phosphorus removal;
2. Process threshold, interlock, logic control;
3. Unattended, regular inspection.
PRODUCT DETAILS
SEWAGE CAN BE RECYCLED AFTER TREATMENT
ADAPT TO A VARIETY OF POLLUTION SOURCES

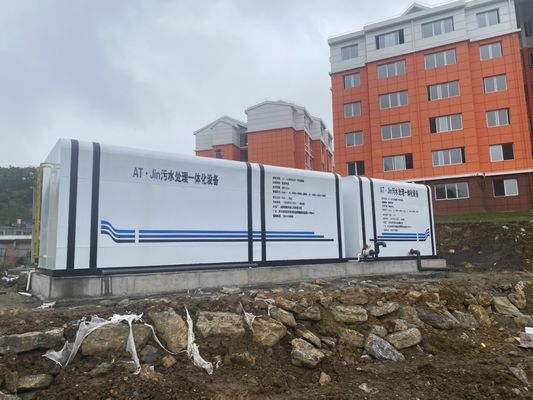

REAL SHOT DISPLAY
