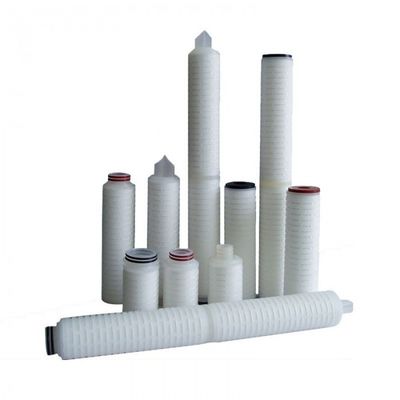

Microporous Folded Membrane Filter Cartridge Ro Water Treatment Plant Accessories

Water Treatment Plant Accessories

20 " High Flow Folded Filter Element Water Treatment Plant Accessories

Product Introduction

The microporous folded membrane filter element takes the compound folded micromembrane as the filter medium, through the membrane surface micropore screening, to achieve a certain particle filtration function.

Technical Parameters

Filtration accuracy: 0.1um, 0.22um, 0.45um, 1um, 3um, 5um, 10um, 20um, 30um, 50um

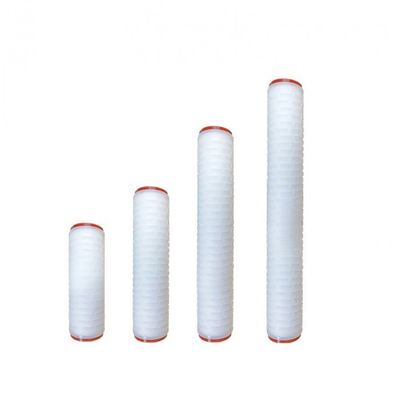

· Filter length: 5 inches, 10 inches, 20 inches, 30 inches, 40 inches

· Outer diameter of filter element: 68mm, 83mm

· Inner diameter of filter element: 28mm

· Tested PH value: 1-12

· Maximum operating temperature: ≤80℃0.1Mpa

· Maximum working pressure: 0.3Mpa at 50℃

· Maximum reverse pressure difference: 0.2Mpa at 25℃

· Maximum disinfection temperature: 120℃ for half an hour each time

Product Features

· Excellent chemical compatibility, suitable for filtering strong acids, bases and organic solvents

· The filter membrane is foldable deep filtration with large filtration area

· Low pressure difference, strong fouling capacity, long service life

· Wide filtering accuracy to choose from

Application field

· Pharmaceutical industry: pre-filtration of various antimicrobials and other liquid medicines

· Food and beverage industry: filtration of wine, mineral water and drinking water

· Petroleum industry: oilfield water injection filtration

· Electronics industry: high purity water pre-filtration, reverse osmosis security filtration

· Chemical industry: filtration of various organic solvents, acids and lye
