Product Details:
|
| Product Name: | Integrated Sewage Treatment Equipment | Material: | Carbon Steel |
|---|---|---|---|
| Colour: | White | Technology: | A2O+Secondary Sedimentation Tank+Chemical Phosphorus Removal |
| Voltage: | 220V/380V | Capacity: | 10000L/H |
| Type: | On Ground | Size: | 3000*8000*3000(mm) |
| High Light: | Integrated Sewage Treatment Equipment 10000L/H,AAO Integrated Sewage Treatment Equipment,AAO wastewater treatment |
||

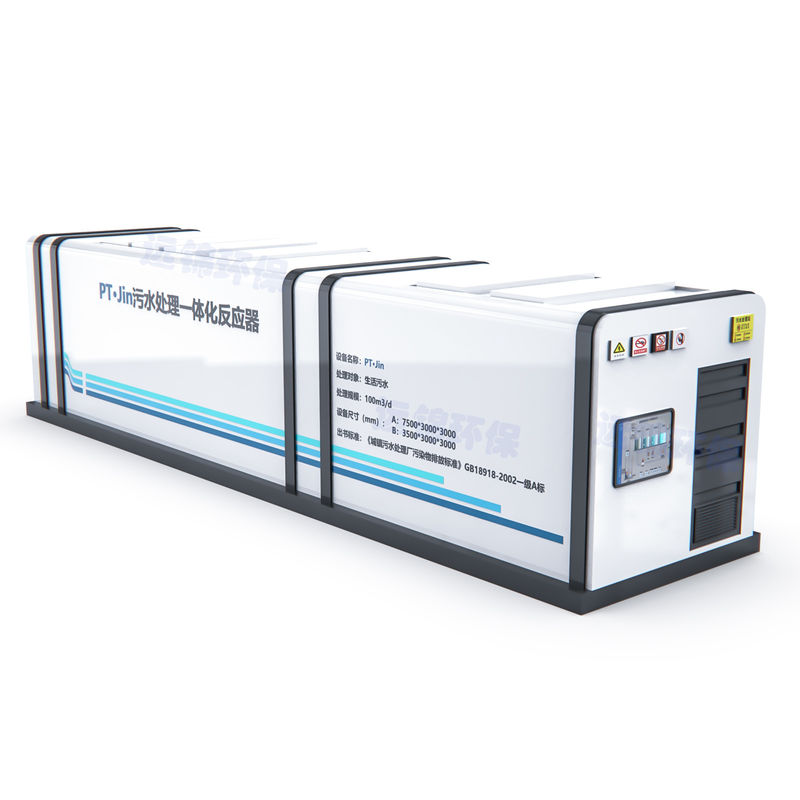

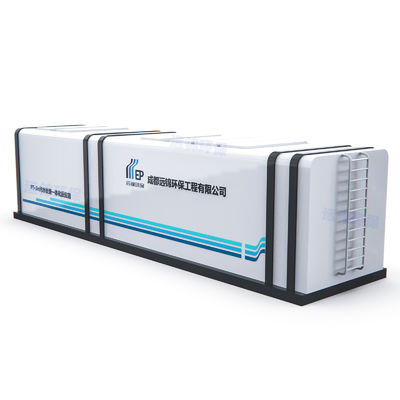

AAO process Integrated Sewage Treatment Equipment Treats Domestic Wastewater
Integrated Sewage Treatment Equipment Description
Integrated Sewage Treatment Equipment series adops "A2O+secondary sedimentation tank +chemical dephosphorization",A series of product based on the traditional process,with stable effluent Reached the"Pollutant Discharge Standard of Urban Sewage Treatment Plant"GB18918-2002-level A emission standard.
Working Principle
Integrated Sewage Treatment Equipment adopts A2O + secondary sedimentation tank + chemical phosphorus removal / regular sludge removal process,The first section of the anaerobic tank flows into the raw sewage and the phosphorus-containing sludge that flows back from the secondary sedimentation tank simultaneously. The main function of this tank is to release phosphorus, increase the concentration of P in the sewage, and absorb dissolved organic matter by microbial cells. The BOD5 concentration in the sewage decreased, and the NH3-N was partially removed due to the synthesis of cells, so that the NH3-N concentration in the sewage decreased, but the NO3-N content did not change. In anoxic ponds, denitrifying bacteria use organic matter in sewage as a carbon source. A large amount of NO3-N and NO2-N are brought into the reflux mixture and reduced to N2 and released to the air, so the concentration of BOD5 decreases, the concentration of NO3-N decreases greatly, and the change of phosphorus is small.
Influent and effluent quality indicators
| Project | PH | COD | BOD5 | SS | NH3-N | TP |
| Incoming water quality | 6-9 | <=350mg/L | <=180mg/L | <=200mg/L | <=30 | <=5mg/L |
| Effluent quality | 6-9 | <=50mg/L | <=10mg/L | <=10mg/L | <=5 | <=0.5mg/L |
Device parameters
| PT·Jin·1 | PT·Jin·2 | ||
| <Emission Standard of Pollutants for Urban Sewage TreatmentPlants>GB18918-2002Grade A standard | <Water Pollution Discharge Standard for Medical lnstitutions>GB18466-2005Emission Standards | ||
| throughput | size | throughput | size |
| (m3/d) | (mm) | (m3/d) | (mm) |
| 10 | 5200*1500*2000 | 10 | 5200*1500*2000 |
| 20 | 4700*2500*2500 | 20 | 4700*2500*2500 |
| 50 | 5800*3000*3000 | 50 | 5800*3000*3000 |
| 100 | A:7500*3000*3000 B:3500*3000*3000 |
100 |
A:6500*3000*3000 B:3500*3000*3000 |
| 150 | A:10500*3000*3000 B:5000*3000*3000 |
150 | A:6500*3000*3000 B:3500*3000*3000 |
| 200 | A:10000*3000*3000 B:8000*3000*3000 |
200 | A:8500*3000*3000 B:6000*3000*3000 |
Application
Residential/village/market town/station/airport/harbour terminal/ship factory/tourist spot/earth warehouse/scenic area similar to other waste water
Advantages
1. Mutual balance between sludge age and phosphorus removal;
2. Process threshold, interlock, logic control;
3. Unattended, regular inspection.
PRODUCT DETAILS
SEWAGE CAN BE RECYCLED AFTER TREATMENT
ADAPT TO A VARIETY OF POLLUTION SOURCES
REAL SHOT DISPLAY
COMPANY REAL SHOW
Chengdu Yuanjin Environmental Protection Engineering Co., Ltd. was established in 2012 with a registered capital of 20 million. The production workshop covers an area of 1,400 square meters. There are more than 20 employees, including 2 senior engineers, 4 intermediate engineers, and 14 professional technicians; our company's technical team, all It is composed of a group of people who have worked in the field of water treatment for a long time. The company is a high-tech enterprise. It has obtained a number of certificates such as a patent certificate, nine software copyrights, a construction enterprise qualification certificate, and ISO9001 international quality management system certification. The environmental protection project will strive to build the most well-known Chengdu water treatment company. We have always adhered to the tenet of "quality first, customer first" and the management policy of "integrity, pragmatism, responsibility and efficiency", and advocated new ideas and new technologies. Tolerance for failure is the company's philosophy, which ensures that every employee of our company can pay for the company wholeheartedly, and that every one of our customers is satisfied with the services provided by the company.
FAQ
1.Why choose us?
1) Yuanjin has 12 years of experience in wastewater and sludge treatment.
2) We introduce advanced technology and experience at home and abroad, and have been committed to the research and development of water treatment equipment for a long time.
3) We only use the best parts from the best suppliers.
4) Yuanjin's technical team is composed of a group of people with long-term working experience in the field of water treatment to provide customers with high-quality services.
2. What is the price of the product?
According to the amount of water treated, the price is different, and the unit price range is 145~866 $/m3·d.
3. What is the effect of the treated water?
1) The treated pure water can be directly consumed and meets the World Health Organization (WHO) drinking water quality standards.
2) The sewage can be directly discharged after treatment, which is environmentally friendly and meets the requirements of international sewage treatment discharge standards.
